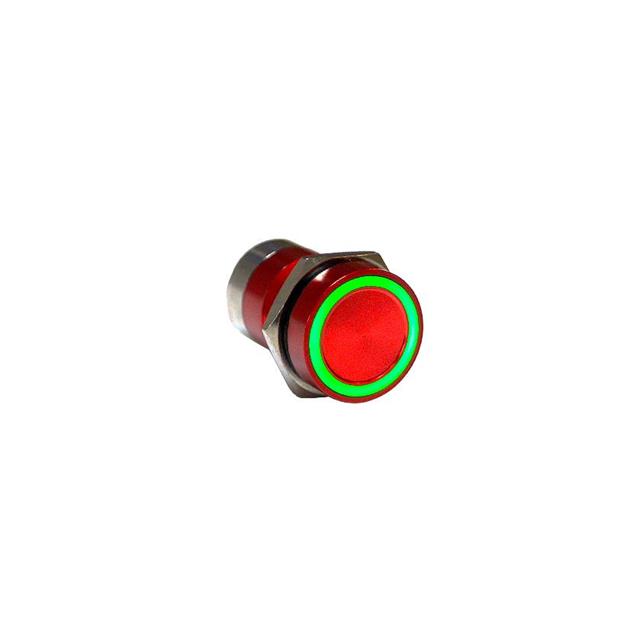

MC16MORGN

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST OFF-MOM

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST OFF-MOM

Technical Specifications

Parameters and characteristics for this part

Specification	MC16MORGN

Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	500 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP68, IP69K
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - DC	24 V

Part	Type	Termination Style	Switch Function	Voltage Rating - DC	Color - Actuator/Cap	Mounting Type	Ingress Protection	Illumination Voltage (Nominal)	Illumination Type, Color	Current Rating (Amps)	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Panel Cutout Dimensions [diameter]	Mechanical Life	Actuator Type
BULGIN LIMITED MC16MORGN	Capacitive Illuminated	Wire Leads	Off-Mom	24 V	Red	Panel Mount Front	IP68 IP69K	12 VDC	Green LED	500 mA	50000000 Cycles	55 °C	-25 °C	SPST-NO	16.2 mm	50000000 Cycles	Button Flush Round
BULGIN LIMITED MC16MORRD	Capacitive Illuminated	Wire Leads	Off-Mom	24 V	Red	Panel Mount Front	IP68 IP69K	12 VDC	LED Red	500 mA	50000000 Cycles	55 °C	-25 °C	SPST-NO	16.2 mm	50000000 Cycles	Button Flush Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 38.14

General part information

Pushbutton Switch SPST-NO Capacitive, Illuminated Panel Mount, Front
