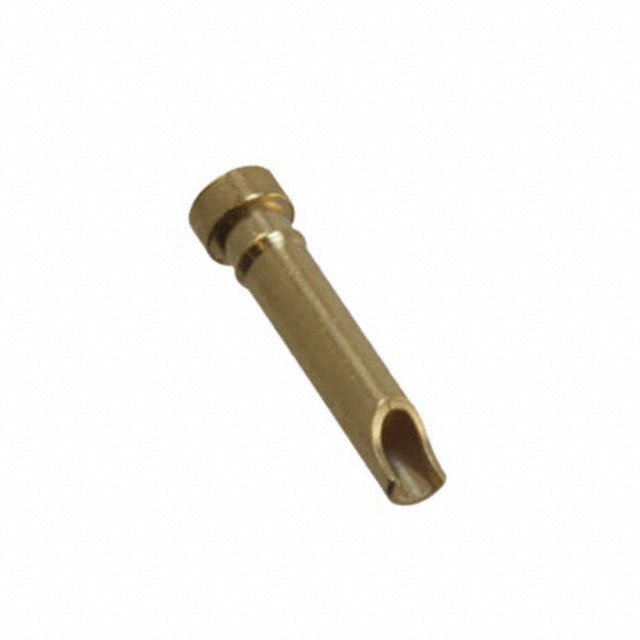

3024-0-01-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.053DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3024-0-01-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.58 mm |
| Length - Above Flange [x] | 0.259 in |
| Length - Overall | 7.37 mm |
| Length - Overall | 0.29 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.35 mm |
| Pin Size - Above Flange [diameter] | 0.053 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.17 | |||
Description
General part information
3024-0 Series
PC Pin Terminal Connector Through Hole Gold 0.053" (1.35mm) Dia
