73069-BB-60
ActiveRF / COAXIAL CABLE ASSEMBLY, 90° SMA PLUG TO SMA PLUG, RG316, 50 OHM, 5 FT, 1.5 M, BROWN
73069-BB-60
ActiveRF / COAXIAL CABLE ASSEMBLY, 90° SMA PLUG TO SMA PLUG, RG316, 50 OHM, 5 FT, 1.5 M, BROWN
Description
General part information
73069 Series

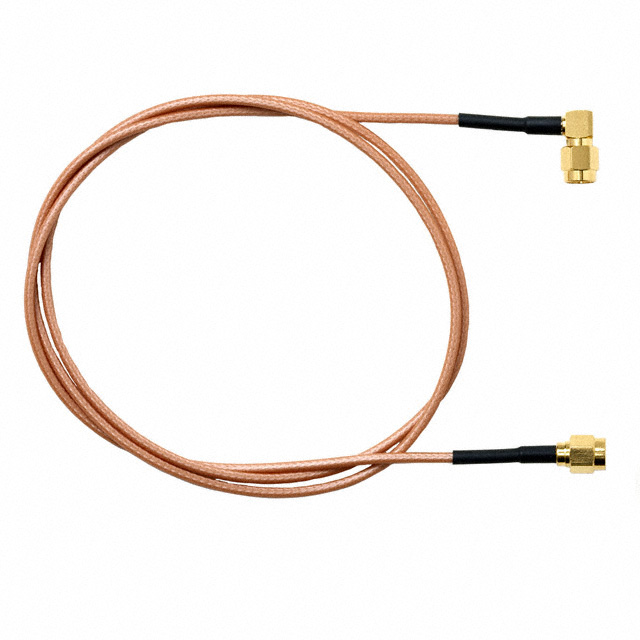

The 73069-BB-60 is a 60-inch RG316/U RF Coaxial Cable Assembly with SMA straight plug to SMA right angle plug connection. It has gold-plated brass connector with gold-plated brass centre contact and also has PTFE insulation and nickel-plated copper crimp ferrule. It is perfect for applications where space, weight, performance and ease of connections are required.
Technical Specifications
Parameters and characteristics for this part
| Specification | 73069-BB-60 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max | 4 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
