122529-10

Active

Amphenol RF

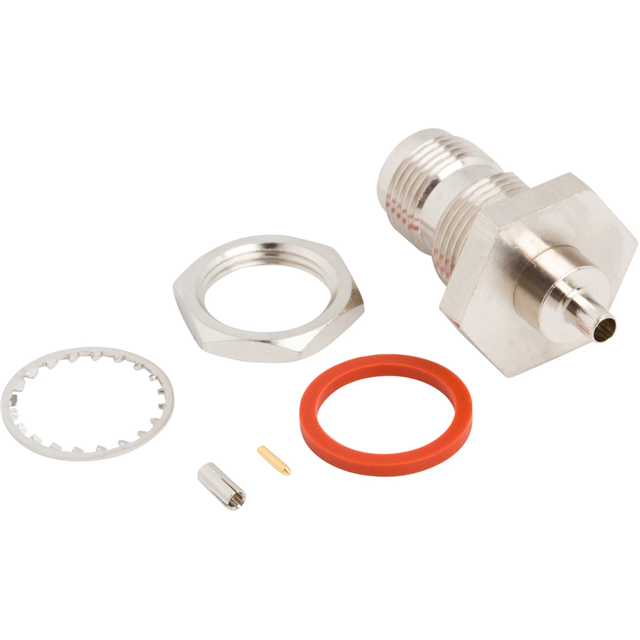

CONN TNC JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN TNC JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	122529-10

Body Finish	Nickel
Body Material	Brass
Cable Group	Coaxial Cable
Cable Group	1.32 mm
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Sleeve, 1 Lockwasher, 2 Insulators, 1 Connector, 1 Contact, 1 Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Includes	Shield Termination	Connector Type	Mounting Feature	Impedance	Body Material	Body Finish	Cable Group	Cable Group	Frequency - Max [Max]	Housing Color	Center Contact Plating	Mating Cycles	Center Contact Material	Contact Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Ports	Dielectric Material	Voltage Rating
Amphenol RF 122529-10	1 Connector 1 Contact 1 Lockwasher 1 Nut 1 Sleeve 2 Insulators	Crimp	Female Socket Jack	Bulkhead - Front Side Nut	50 Ohms	Brass	Nickel	Coaxial Cable	1.32 mm	6000 MHz	Silver	Gold	500	Brass Phosphor Bronze	Crimp	TNC	-65 ░C	165 °C	IP67 - Dust Tight Waterproof	1	Polytetrafluoroethylene (PTFE)	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 14.60

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
