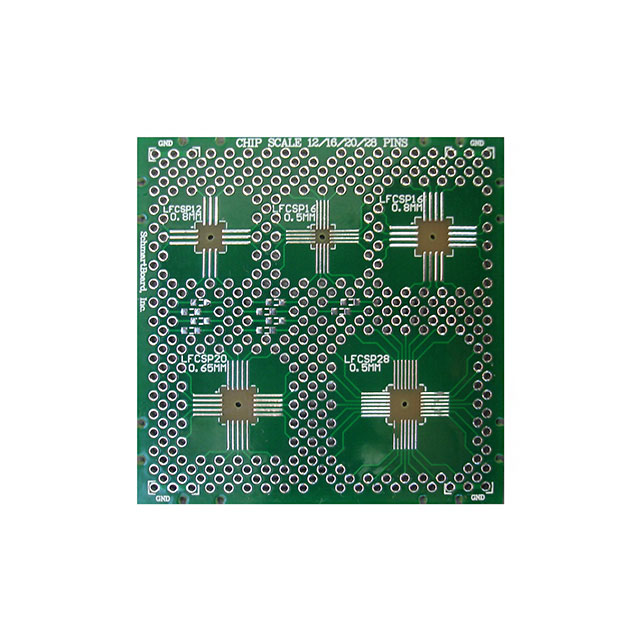

202-0042-01

Active

Schmartboard, Inc.

QFN SCHMARTBOARDEZ .5MM - 16 AND

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFN SCHMARTBOARDEZ .5MM - 16 AND

Technical Specifications

Parameters and characteristics for this part

Specification	202-0042-01

Number of Positions	20
Package Accepted	QFN
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

QFN SCHMARTBOARDEZ .5MM - 16 AND

Part	Package Accepted	Number of Positions	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Proto Board Type	Pitch [x]	Pitch [x]
Schmartboard, Inc. 202-0042-01	QFN	20	2 in	50.8 mm	50.8 mm	2 in	SMD to Plated Through Hole Board	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

QFN SCHMARTBOARDEZ .5MM - 16 AND

Technical documentation and resources
