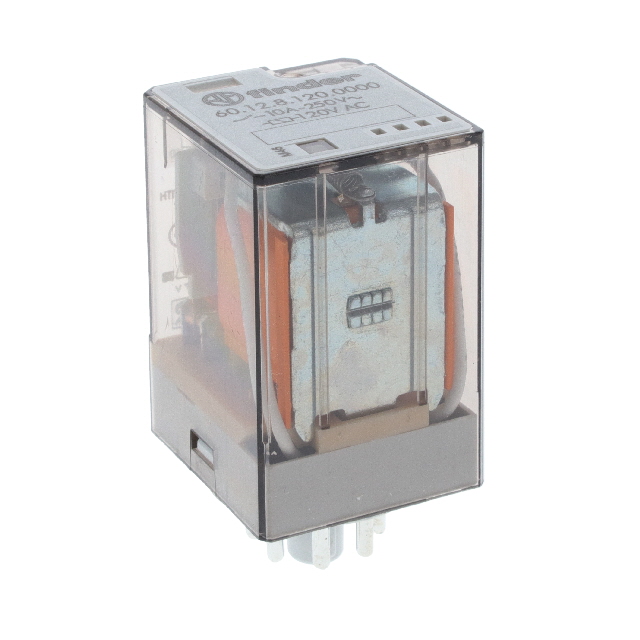

60.12.8.120.0000

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

60.12.8.120.0000

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	60.12.8.120.0000

Approval Agency	CCC, VDE, EAC, UKCA, CSA, RINA, CE, cURus
Coil Current	18.6 mA
Coil Resistance	1.94 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Load - Max Switching	4000 VA
Mounting Type	Socketable
Must Operate Voltage	96 VAC
Must Release Voltage	24 VAC
Operate Time	11 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Switching Voltage [Max]	400 VAC
Termination Style	Plug In, 8 Pin (Octal)

60.12.8 Series

Part	Approval Agency	Coil Voltage	Mounting Type	Must Release Voltage	Must Operate Voltage	Coil Resistance	Operate Time	Contact Rating (Current)	Switching Voltage [Max]	Contact Form	Coil Type	Relay Type	Load - Max Switching	Termination Style	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Contact Material	Features	Load - Max Switching [Max]
Finder Relays, Inc. 60.12.8.048.0040	CCC CE CSA cURus EAC RINA UKCA VDE	48 VAC/DC	Socketable	9.6 VAC	38.4 VAC	290 Ohms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	47 mA	Silver Nickel (AgNi)
Finder Relays, Inc. 60.12.8.230.0050	CCC CE CSA cURus EAC RINA UKCA VDE	230 VAC	Socketable	46 VAC	184 VAC	7.52 kOhms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	10.5 mA	Silver Nickel (AgNi)	Lighted Indicator Test Button
Finder Relays, Inc. 60.12.8.120.5020	CCC CE CSA cURus EAC RINA UKCA VDE	120 VAC	Socketable	24 VAC	96 VAC	1.94 kOhms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	18.6 mA	Gold (Au) Silver Nickel (AgNi)	Mechanical Indicator
Finder Relays, Inc. 60.12.8.240.0050	CCC CE CSA cURus EAC RINA UKCA VDE	240 VAC	Socketable	48 VAC	192 VAC	8.5 kOhms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	9.2 mA	Silver Nickel (AgNi)	Lighted Indicator Test Button
Finder Relays, Inc. 60.12.8.120.0000	CCC CE CSA cURus EAC RINA UKCA VDE	120 VAC	Socketable	24 VAC	96 VAC	1.94 kOhms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	18.6 mA	Silver Nickel (AgNi)
Finder Relays, Inc. 60.12.8.120.0030	CCC CE CSA cURus EAC RINA UKCA VDE	120 VAC	Socketable	24 VAC	96 VAC	1.94 kOhms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	18.6 mA	Silver Nickel (AgNi)	Lighted Indicator
Finder Relays, Inc. 60.12.8.230.5250	CCC CE CSA cURus EAC RINA UKCA VDE	230 VAC	Socketable	46 VAC	184 VAC	7.25 kOhms	11 ms	6 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose		Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	10.5 mA	Gold (Au) Silver Nickel (AgNi)	Lighted Indicator Test Button	2400 VA
Finder Relays, Inc. 60.12.8.006.0040	CCC CE CSA cURus EAC RINA UKCA VDE	6 VAC	Socketable	1.2 VAC	4.8 VAC/DC	4.6 Ohms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	367 mA	Silver Nickel (AgNi)
Finder Relays, Inc. 60.12.8.024.0030	CCC CE CSA cURus EAC RINA UKCA VDE	24 VAC	Socketable	4.8 VAC	19.2 VAC	74 Ohms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	90 mA	Silver Nickel (AgNi)	Lighted Indicator
Finder Relays, Inc. 60.12.8.240.0000	CCC CE CSA cURus EAC RINA UKCA VDE	240 VAC	Socketable	48 VAC	192 VAC	8.5 kOhms	11 ms	10 A	400 VAC	DPDT (2 Form C)	Non Latching	General Purpose	4000 VA	Plug In 8 Pin (Octal)	4 ms	-40 °C	70 °C	9.2 mA	Silver Nickel (AgNi)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.34
		10	$ 15.41
		30	$ 14.64
		50	$ 13.87
		100	$ 13.10
		250	$ 11.94
		500	$ 11.17

Description

General part information

60.12.8 Series

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
