MS3126P10-6P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
MS3126P10-6P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126P10-6P | MS3126P10 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Potted | Coupling Nut, Potted |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 96.86 | |
| 10 | $ 88.88 | |||
| 25 | $ 85.46 | |||
| 50 | $ 82.61 | |||
| 100 | $ 78.05 | |||
MS3126P10 Series
MIL-26482 MS/PT/CMB PLUG
| Part | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Ingress Protection | Orientation | Contact Material | Shielding | Connector Type | Qualification | Primary Material | Features | Voltage Rating | Shell Size - Insert | Shell Material | Fastening Type | Applications | Mounting Type | Contact Finish - Mating | Shell Finish | Grade | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126P10-6P | Neoprene | -55 °C | 125 °C | Olive Drab | 6 | Environment Resistant | N | Copper Alloy | Unshielded | Male Pins, Plug | MIL-DTL-26482 Series I | Metal | Coupling Nut, Potted | 600 VAC | 10-6 | Aluminum | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Free Hanging (In-Line) | Gold | Olive Drab Chromate over Cadmium | Military | Crimp | 7.5 A |
Amphenol Industrial Operations MS3126P10-6S(LC) |
Description
General part information
MS3126P10 Series

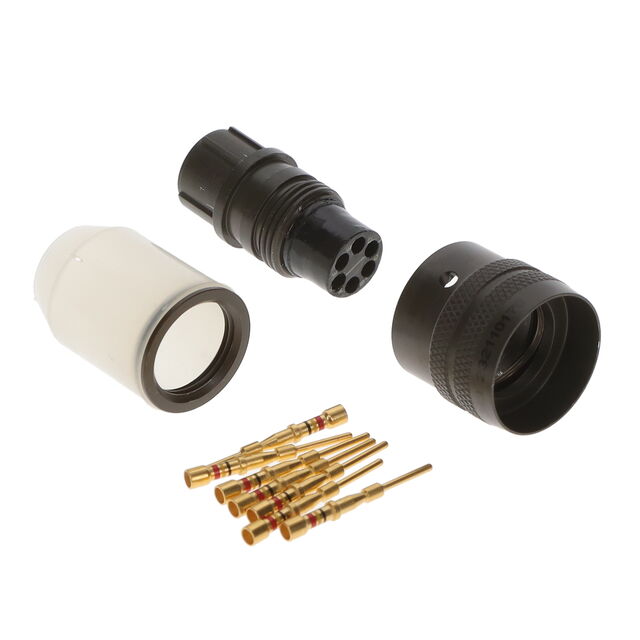

6 Position Circular Connector Plug, Male Pins Crimp
