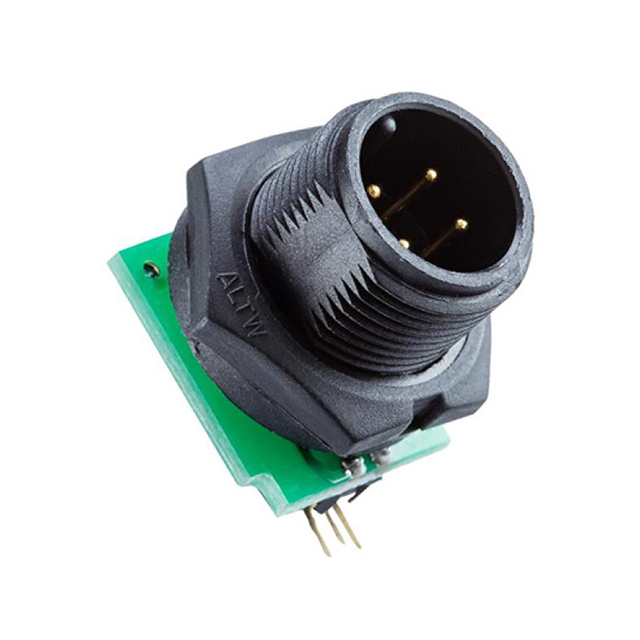

BD-08PMMR-LC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 08 PIN

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 08 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	BD-08PMMR-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Insert Material	Contact Material	Features	Orientation	Termination	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Ingress Protection	Current Rating (Amps)	Primary Material	Connector Type	Shell Size - Insert	Voltage Rating	Shielding	Number of Positions	Color
Amphenol LTW BD-08PMMR-LC7001	Polyamide (PA) Nylon Glass Filled	Copper Alloy	Board Guide	Keyed	Solder	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	Gold	Through Hole Right Angle	IP67 - Dust Tight Waterproof	5 A	Plastic	Male Pins Receptacle	B	250 VDC	Unshielded	8	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Solder
