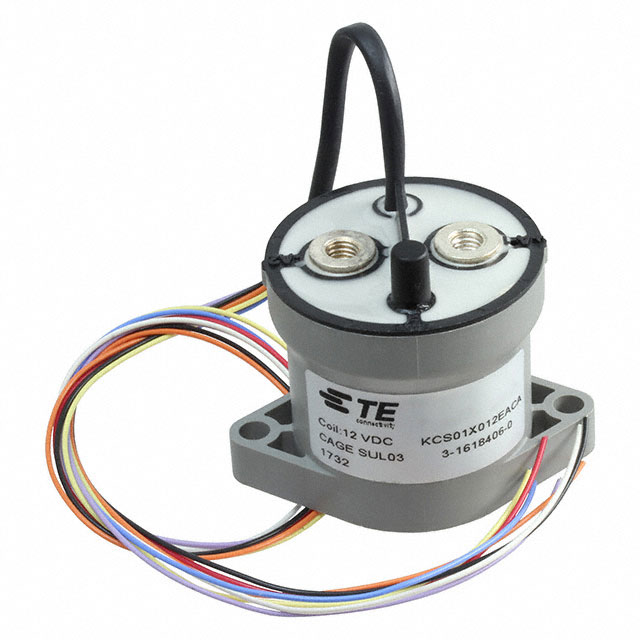

KCS01X012EACA

Active

TE Connectivity Aerospace, Defense and Marine

RELAY CONTACTOR SPST 100A 12V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY CONTACTOR SPST 100A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY CONTACTOR SPST 100A 12V

Part	Contact Rating (Current)	Must Release Voltage	Coil Power	Must Operate Voltage	Release Time	Switching Voltage	Termination Style	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Mounting Type	Features	Coil Resistance	Operate Time	Contact Form
TE Connectivity Aerospace, Defense and Marine KCS01X012EACA	100 A	5 VDC	2.7 W	9 VDC	5 ms	600 VDC	Stud, Wire Leads	12 VDC	-40 °C	105 ░C	220 mA	Chassis Mount	Sealed - Hermetically	54 Ohms	20 ms	SPST-NO (DM) (1 Form X)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY CONTACTOR SPST 100A 12V

Technical documentation and resources
