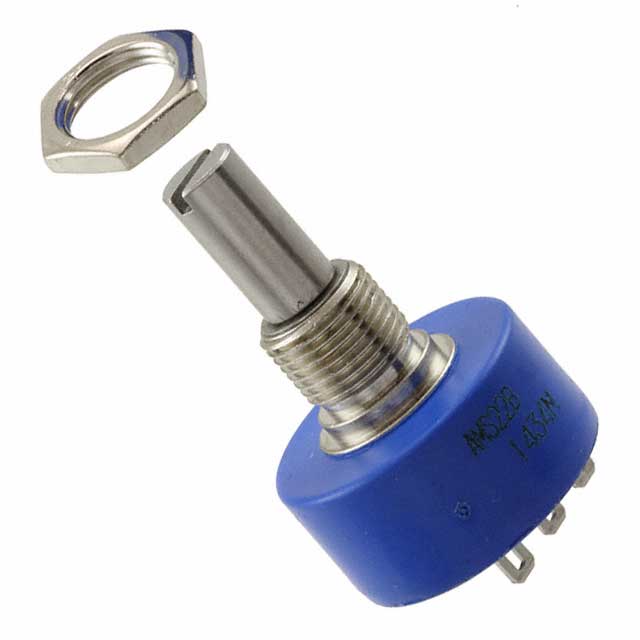

AMS22B5A1BHASL326N

Active

Bourns Inc.

SENSOR ROTARY 260DEG SOLDER LUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMS22B5A1BHASL326N

Active

Bourns Inc.

SENSOR ROTARY 260DEG SOLDER LUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMS22B5A1BHASL326N

Actuator Type	Slotted Shaft
For Measuring	Rotary Position
Linearity	0.5 %
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Output Signal	Clockwise Increase
Package / Case	Slotted Shaft, Module
Rotation Angle - Electrical, Mechanical [Max]	260 °
Rotation Angle - Electrical, Mechanical [Min]	10 °
Technology	Hall Effect
Termination Style	Solder Lug

AMS22B Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Technology	Actuator Type	Output	For Measuring	Output Signal	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]	Termination Style	Linearity	Rotation Angle - Electrical, Mechanical
Bourns Inc. AMS22B5A1BLASL108N	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position	Clockwise Increase	10 °	80 °	Solder Lug	0.5 %
Bourns Inc. AMS22B5A1BHASL112N	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position		10 °	120 °	Solder Lug	0.5 %
Bourns Inc. AMS22B5A1BHASL301N	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position	Clockwise Increase			Solder Lug	0.5 %	10 °
Bourns Inc. AMS22B5A1BHASL320N	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position	Clockwise Increase	10 °	200 °	Solder Lug	0.5 %
Bourns Inc. AMS22B5A1BHASL326N	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position	Clockwise Increase	10 °	260 °	Solder Lug	0.5 %
Bourns Inc. AMS22B5A1BHASL115N	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position		10 °	150 °	Solder Lug	0.5 %
Bourns Inc. AMS22B5A1BHASL3BBN	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position	Clockwise Increase			Solder Lug	0.5 %
Bourns Inc. AMS22B5A1BHASL114N	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position		10 °	140 °	Solder Lug	0.5 %
Bourns Inc. AMS22B5A1BLAFL334S	125 °C	-40 °C	Flatted Shaft Module	Hall Effect	Flatted Shaft	Analog Voltage	Rotary Position	Clockwise Increase	10 °	340 °	Solder Lug	0.5 %
Bourns Inc. AMS22B5A1BHASL327N	125 °C	-40 °C	Module Slotted Shaft	Hall Effect	Slotted Shaft	Analog Voltage	Rotary Position	Clockwise Increase	10 °	270 °	Solder Lug	0.5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.13
		5	$ 34.69
		10	$ 32.24
		25	$ 29.26
		50	$ 27.20
		100	$ 25.28

Description

General part information

AMS22B Series

Hall Effect Sensor Rotary Position Slotted Shaft Solder Lug

Documents

Technical documentation and resources
