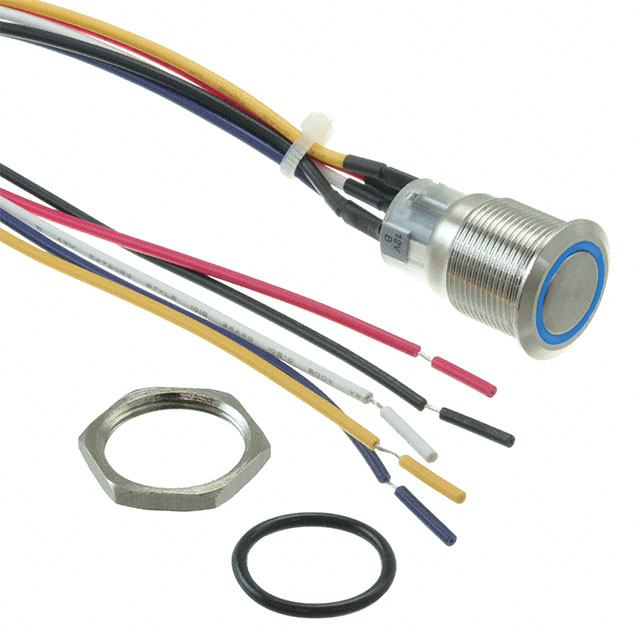

PV4FWB0SS-344

Active

E-Switch

SWITCH PB SPDT 2A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB SPDT 2A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	PV4FWB0SS-344

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

Part	Panel Cutout Dimensions [diameter]	Mechanical Life	Termination Style	Electrical Life	Current Rating (Amps)	Mounting Type	Voltage Rating - DC	Illumination Voltage (Nominal)	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Type	Switch Function	Color - Actuator/Cap	Ingress Protection	Circuit	Actuator Type
E-Switch PV4FWB0SS-344	19 mm	1000000 Cycles	Wire Leads	50000 Cycles	2 A	Panel Mount Front	24 V	12 VDC	No Marking	55 °C	-20 C	Blue LED	Anti-Vandal Illuminated	On-Mom	Silver	IP65 - Dust Tight Water Resistant	SPDT	Button Flush Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
