PBC10SFDN

Active

Sullins Connector Solutions

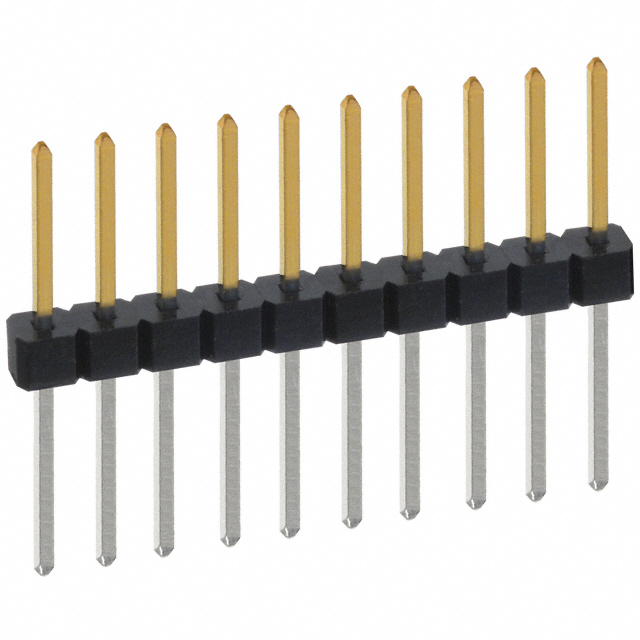

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC10SFDN

Active

Sullins Connector Solutions

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC10SFDN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	21.29 mm
Overall Contact Length	0.838 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC10 Series

Part	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Connector Type	Termination	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Number of Rows	Number of Positions	Number of Positions Loaded	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Insulation Color	Material Flammability Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Shape	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PBC10SAAN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.45 "	11.43 mm	Push-Pull	2.54 µm	100 µin	0.12 in	3.05 mm	Tin	1	10	All	Unshrouded	0.23 in	5.84 mm	Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable
Sullins Connector Solutions PBC10DFBN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.638 in	16.21 mm	Push-Pull	2.54 µm	100 µin			Tin	2	20	All	Unshrouded	0.318 "		Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable	2.54 mm	0.1 in	8.08 mm	0.22 in	5.58 mm
Sullins Connector Solutions PBC10DFAN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.538 "	13.67 mm	Push-Pull	2.54 µm	100 µin	0.12 in	3.05 mm	Tin	2	20	All	Unshrouded	0.318 "		Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable	2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PBC10DABN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.56 in	14.22 mm	Push-Pull	2.54 µm	100 µin			Tin	2	20	All	Unshrouded	0.23 in	5.84 mm	Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable	2.54 mm	0.1 in		0.23 in	5.84 mm
Sullins Connector Solutions PBC10SFDN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.838 in	21.29 mm	Push-Pull	2.54 µm	100 µin	0.42 in	10.67 mm	Tin	1	10	All	Unshrouded	0.318 "		Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable			8.08 mm
Sullins Connector Solutions PBC10SAFN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.95 in	24.13 mm	Push-Pull	2.54 µm	100 µin			Tin	1	10	All	Unshrouded	0.23 in	5.84 mm	Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable				0.62 in	15.75 mm
Sullins Connector Solutions PBC10SABN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.56 in	14.22 mm	Push-Pull	2.54 µm	100 µin			Tin	1	10	All	Unshrouded	0.23 in	5.84 mm	Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable				0.23 in	5.84 mm
Sullins Connector Solutions PBC10SFBN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.638 in	16.21 mm	Push-Pull	2.54 µm	100 µin			Tin	1	10	All	Unshrouded	0.318 "		Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable			8.08 mm	0.22 in	5.58 mm
Sullins Connector Solutions PBC10SFEN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder	0.938 in	23.83 mm	Push-Pull	2.54 µm	100 µin			Tin	1	10	All	Unshrouded	0.318 "		Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable			8.08 mm	0.52 "	13.21 mm
Sullins Connector Solutions PBC10SACN	3 A	10 çin	0.25 çm	Male Pin	0.1 in	2.54 mm	Phosphor Bronze	Gold	Breakaway Header	Solder		0.65 in	Push-Pull	2.54 µm	100 µin	0.32 in	8.13 mm	Tin	1	10	All	Unshrouded	0.23 in	5.84 mm	Black	UL94 V-0	Through Hole	0.1 in	2.54 mm	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Square	Board to Board Cable						16.51 mm
