M85049/49-2S12N

Active

Amphenol Interconnect India

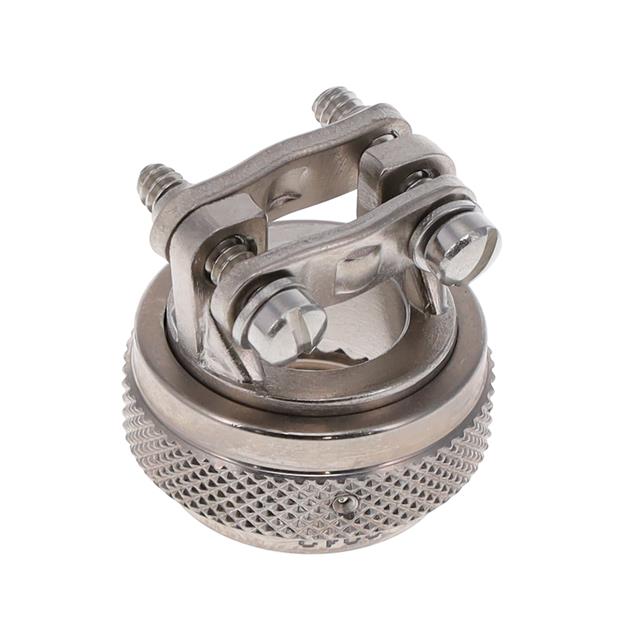

CONN CABLE CLAMP SZ12 13 SILVER

Deep-Dive with AI

Search across all available documentation for this part.

M85049/49-2S12N

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ12 13 SILVER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 296.18
		1	$ 21.04
		25	$ 17.28
		100	$ 15.03

Description

General part information

M85049/49 Series

Silver Connector Cable Clamp 12, 13

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/49-2S12N	M85049/49 Series

Cable Exit	180 °	180 °
Cable Opening	-	5.94 - 20.9 mm
Cable Opening	-	3.89 - 9.68 mm
Cable Opening	-	0.153 - 0.381 in
Cable Opening	-	0.234 - 0.823 in
Cable Opening	-	6.6 - 24.38 mm
Cable Opening	-	0.26 - 0.96 in
Cable Opening [diameter]	8.33 mm, 4.83 mm	4.83 - 8.33 mm
Cable Opening [diameter]	0.328 in, 0.19 in	0.19 - 0.328 in
Color	Silver	Silver, Olive Drab, Olive
Diameter - Outside [diameter]	29.36 mm	21.59 - 44.7 mm
Diameter - Outside [diameter]	1.156 in	0.85 - 1.76 in
Features	Clamp Screws, Self-Locking	Clamp Screws, Self-Locking
For Use With/Related Products	MIL-DTL-38999 Series I, II	MIL-DTL-27599, MIL-DTL-38999 Series II, MIL-DTL-38999 Series I, MIL-DTL-38999 Series I, II
Material	Aluminum Alloy	Aluminum Alloy
Plating	Electroless Nickel	Electroless Nickel, Cadmium, Cadmium Nickel
Shell Size - Insert	12, 13	10 - 23
Shielding	Unshielded	Unshielded
Thread Size	-	11/16-24 UNEF, 15/16-20 UNEF, 13/16-20 UNEF
Type	Cable Clamp	Cable Clamp

M85049/49 Series

CONN CAB CLMP SZ12 SIL 11/16-24

Part	Plating	Shell Size - Insert	Cable Exit	Thread Size	Shielding	Color	Material	Features	For Use With/Related Products	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/49-2-12N	Electroless Nickel	12	180 °	11/16-24 UNEF	Unshielded	Silver	Aluminum Alloy	Clamp Screws	MIL-DTL-27599, MIL-DTL-38999 Series I, MIL-DTL-38999 Series II	Cable Clamp
Amphenol Interconnect India M85049/49-2S12W	Cadmium	12, 13	180 °		Unshielded	Olive Drab	Aluminum Alloy	Clamp Screws, Self-Locking	MIL-DTL-38999 Series I, II	Cable Clamp	29.36 mm	1.156 in	4.83 mm, 8.33 mm	0.19 in, 0.328 in
Amphenol Interconnect India M85049/49-2-18W	Cadmium		180 °		Unshielded	Olive Drab	Aluminum Alloy	Clamp Screws	MIL-DTL-38999 Series I, II	Cable Clamp	35.56 mm	1.4 in			16.1 mm	8.25 mm	0.325 in	0.634 in
Amphenol Interconnect India M85049/49-2S12N	Electroless Nickel	12, 13	180 °		Unshielded	Silver	Aluminum Alloy	Clamp Screws, Self-Locking	MIL-DTL-38999 Series I, II	Cable Clamp	29.36 mm	1.156 in	4.83 mm, 8.33 mm	0.19 in, 0.328 in
Amphenol Interconnect India M85049/49-2S10W	Cadmium	10, 11	180 °		Unshielded	Olive Drab	Aluminum Alloy	Clamp Screws, Self-Locking	MIL-DTL-38999 Series I, II	Cable Clamp	25 mm	0.984 "			5.94 mm	3.89 mm	0.153 in	0.234 in
Amphenol Interconnect India M85049/49-2-22W	Cadmium	22, 23	180 °		Unshielded	Olive Drab	Aluminum Alloy	Clamp Screws	MIL-DTL-38999 Series I, II	Cable Clamp	41.91 mm	1.65 "			20.9 mm	9.68 mm	0.381 in	0.823 in
Amphenol Interconnect India M85049/49-2S22W	Cadmium	22	180 °		Unshielded	Olive	Aluminum Alloy	Clamp Screws, Self-Locking	MIL-DTL-38999 Series I, II	Cable Clamp	44.7 mm	1.76 in							16.26 mm, 24.38 mm	0.64 in, 0.96 in
Amphenol Interconnect India M85049/49-2S20N	Electroless Nickel	20, 21	180 °		Unshielded	Silver	Aluminum Alloy	Clamp Screws, Self-Locking	MIL-DTL-38999 Series I, II	Cable Clamp	41.68 mm	1.641 "			17.73 mm	8.71 mm	0.343 in	0.698 in
Amphenol Interconnect India M85049/49-2S16W	Cadmium Nickel	16	180 °	15/16-20 UNEF	Unshielded	Olive	Aluminum Alloy	Clamp Screws, Self-Locking	MIL-DTL-27599, MIL-DTL-38999 Series I, MIL-DTL-38999 Series II	Cable Clamp
Amphenol Interconnect India M85049/49-2-14W	Cadmium Nickel	14	180 °	13/16-20 UNEF	Unshielded	Olive	Aluminum Alloy	Clamp Screws	MIL-DTL-27599, MIL-DTL-38999 Series I, MIL-DTL-38999 Series II	Cable Clamp
