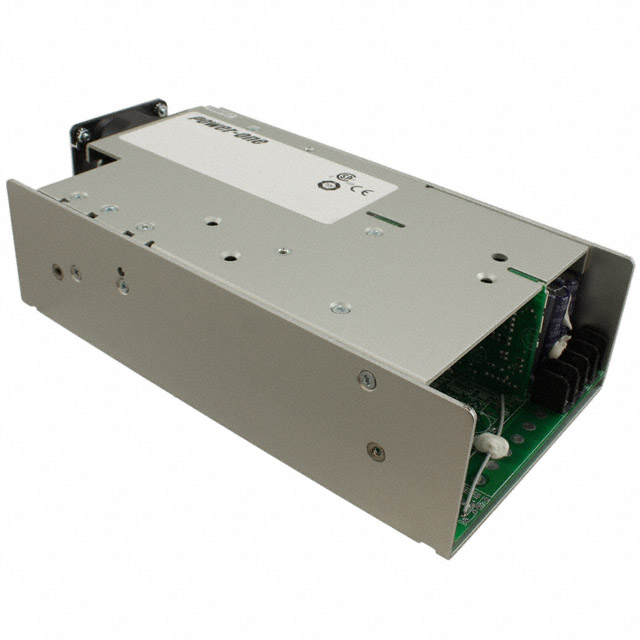

PFC375-1024F

Active

Bel Power Solutions

AC/DC CONVERTER 24V 375W

Deep-Dive with AI

Search across all available documentation for this part.

PFC375-1024F

Active

Bel Power Solutions

AC/DC CONVERTER 24V 375W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PFC375 Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PFC375-1024F	PFC375 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	15 A	7.8 - 40 A
Current - Output 2	-	10 A
Current - Output 3	-	4 - 6 A
Current - Output 4	-	3 - 4 A
Efficiency	68 %	68 %
Features	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC
Minimum Load Required	False	False, True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	375 W	375 W
Size / Dimension [x]	228.6 mm	228.6 mm
Size / Dimension [x]	9 in	9 in
Size / Dimension [y]	5 "	5 "
Size / Dimension [y]	127 mm	127 mm
Size / Dimension [z]	63.5 mm	63.5 mm
Size / Dimension [z]	2.5 in	2.5 in
Type	Enclosed	Enclosed
Voltage - Isolation	2.6 kV	2.6 kV
Voltage - Output 1	24 V	5 - 48 V
Voltage - Output 2	-	5 - 12 V
Voltage - Output 3	-	12 - 15 V
Voltage - Output 4	-	5 - 24 V

PFC375 Series

AC/DC CONVERTER 24V 375W

Part	Applications	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Features	Type	Number of Outputs	Voltage - Output 1	Mounting Type	Current - Output 1	Power (Watts)	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 4	Current - Output 2	Current - Output 4	Voltage - Output 3	Current - Output 3	Voltage - Output 2
Bel Power Solutions PFC375-1024F	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	1	24 V	Chassis Mount	15 A	375 W	68 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm
Bel Power Solutions PFC375-4002	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	4	5 V	Chassis Mount	40 A	375 W	68 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	24 V	10 A	3 A	12 V	6 A	12 V
Bel Power Solutions PFC375-1012	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	1	12 V	Chassis Mount	30 A	375 W	68 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm
Bel Power Solutions PFC375-4000G	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	4	5 V	Chassis Mount	40 A	375 W	68 %							5 V	10 A	3 A	12 V	6 A	12 V
Bel Power Solutions PFC375-4201	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	4	24 V	Chassis Mount	10 A	375 W	68 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	15 V	10 A	4 A	15 V	4 A	5 V
Bel Power Solutions PFC375-1028FMG	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	1	28 V	Chassis Mount	13.4 A		68 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm
Bel Power Solutions PFC375-4201FG	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	4	24 V	Chassis Mount	10 A	375 W	68 %							15 V	10 A	4 A	15 V	4 A	5 V
Bel Power Solutions PFC375-4200F	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	4	24 V	Chassis Mount	10 A	375 W	68 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	12 V	10 A	4 A	12 V	4 A	5 V
Bel Power Solutions PFC375-4201F	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	4	24 V	Chassis Mount	10 A	375 W	68 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	15 V	10 A	4 A	15 V	4 A	5 V
Bel Power Solutions PFC375-1028FM	ITE (Commercial)	70 °C	CE	2.6 kV	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	Enclosed	1	28 V	Chassis Mount	13.4 A	375 W	68 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm
