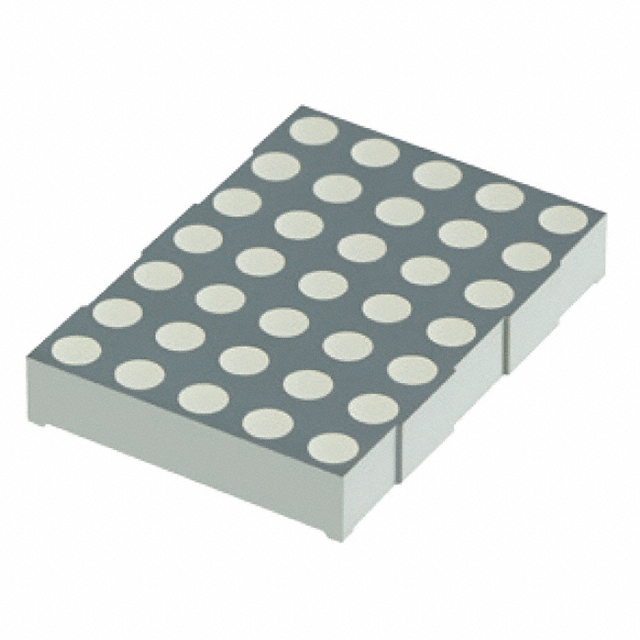

XMMDK50A

Active

SunLED

LED DOT MATRIX 5X7 2.00" RED CA

Search across all available documentation for this part.

Active

SunLED

LED DOT MATRIX 5X7 2.00" RED CA

Technical Specifications

Parameters and characteristics for this part

Specification	XMMDK50A

Color	Red
Configuration [x]	5
Configuration [y]	7
Internal Connection	Common Anode Column, Common Cathode Row
Millicandela Rating	42 mcd
Size / Dimension [x]	2.09 in
Size / Dimension [x]	53.1 mm
Size / Dimension [y]	1.48 in
Size / Dimension [y]	37.7 mm
Size / Dimension [z]	0.33 in
Size / Dimension [z]	8.5 mm
Voltage - Forward (Vf) (Typ)	1.85 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Color	Voltage - Forward (Vf) (Typ)	Internal Connection	Configuration [y]	Configuration [x]
SunLED XMMDK50A	2.09 in	0.33 in	8.5 mm	1.48 in	37.7 mm	53.1 mm	42 mcd	Red	1.85 V	Common Anode Column Common Cathode Row	7	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	130	$ 3.75

General part information

Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Red 1.85V 2.09" L x 1.48" W x 0.33" H (53.10mm x 37.70mm x 8.50mm)
