2966142

Active

Phoenix Contact

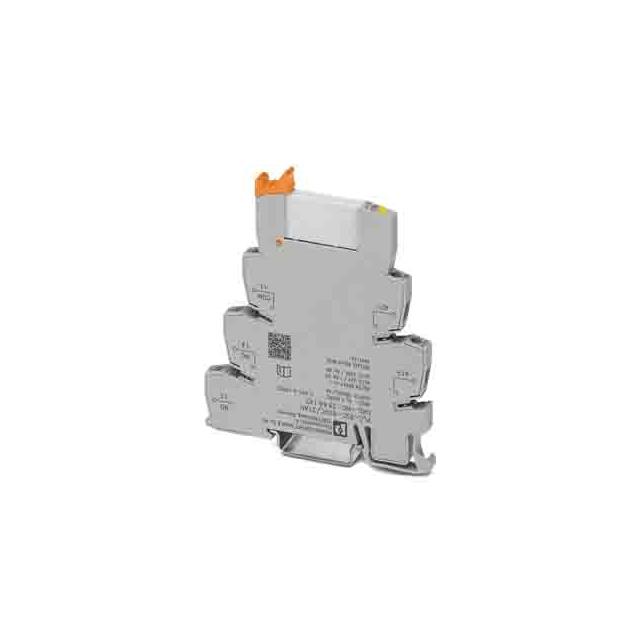

RELAY GEN PURPOSE SPDT 6A 60V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2966142

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 60V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.73

Description

General part information

29661 Series

General Purpose Relay SPDT (1 Form C) 60VDC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2966142	29661 Series

Approval Agency	UKCA, CE	UKCA, CE
Coil Current	-	3.5 - 11 mA
Coil Resistance	12.5 kOhms	2.182 - 34.29 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	60 VDC	24 - 120 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)	Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A	6 A
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	5 ms	5 - 6 ms
Operating Temperature [Max]	60 °C	55 - 60 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Relay Type	General Purpose	General Purpose
Release Time	8 ms	8 - 15 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal

29661 Series

RELAY GEN PURPOSE SPDT 6A 60V

Part	Termination Style	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Operate Time	Contact Rating (Current)	Contact Form	Contact Material	Approval Agency	Features	Coil Voltage	Mounting Type	Coil Resistance	Relay Type	Switching Voltage	Coil Current
Phoenix Contact 2966142	Screw Terminal	8 ms	-40 °C	60 °C	Non Latching	5 ms	6 A	SPDT (1 Form C)	Gold (Au), Silver Tin Oxide (AgSnO)	CE, UKCA	Lighted Indicator, Socket Included	60 VDC	DIN Rail	12.5 kOhms	General Purpose	250 VAC, 250 VDC
Phoenix Contact 2966197	Screw Terminal	15 ms	-25 °C	55 °C	Non Latching	6 ms	6 A	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	CE, UKCA	Lighted Indicator, Socket Included	120 VAC, 120 VDC	DIN Rail	34.29 kOhms	General Purpose	250 VAC, 250 VDC	3.5 mA
Phoenix Contact 2966139	Screw Terminal	8 ms	-40 °C	60 °C	Non Latching	5 ms	6 A	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	CE, UKCA	Lighted Indicator, Socket Included	60 VDC	DIN Rail	12.5 kOhms	General Purpose	250 VAC, 250 VDC
Phoenix Contact 2966184	Screw Terminal	15 ms	-25 °C	60 °C	Non Latching	6 ms	6 A	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	CE, UKCA	Lighted Indicator, Socket Included	24 VAC	DIN Rail	2.182 kOhms	General Purpose	250 VAC, 250 VDC	11 mA
Phoenix Contact 2966113	Screw Terminal	8 ms	-25 °C	60 °C	Non Latching	5 ms	6 A	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	CE, UKCA	Lighted Indicator, Socket Included	48 VDC	DIN Rail		General Purpose	250 VAC, 250 VDC
Phoenix Contact 2966126	Screw Terminal	8 ms	-40 °C	60 °C	Non Latching	5 ms	6 A	SPDT (1 Form C)	Gold (Au), Silver Tin Oxide (AgSnO)	CE, UKCA	Lighted Indicator, Socket Included	48 VDC	DIN Rail	5.22 kOhms	General Purpose	250 VAC, 250 VDC	9.2 mA
