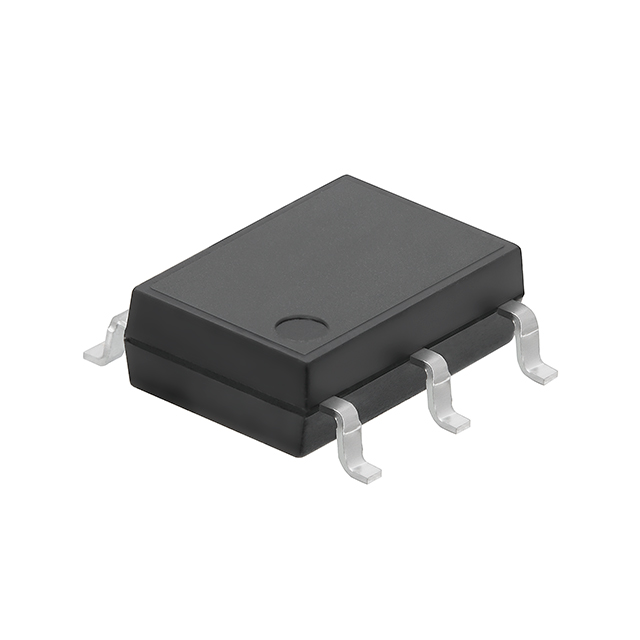

AQV214SX
ActivePanasonic Electric Works
SSR RELAY SPST-NO 100MA 0-400V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AQV214SX
ActivePanasonic Electric Works
SSR RELAY SPST-NO 100MA 0-400V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AQV214SX |
|---|---|
| Load Current | 100 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 50 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4.4 mm, 0.173 in |
| Package / Case | 6-SOP |
| Supplier Device Package | 6-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.14 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.11 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.76 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.58 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.32 | |||
| Digi-Reel® | 1 | $ 2.11 | ||
| 10 | $ 1.98 | |||
| 25 | $ 1.76 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.58 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.32 | |||
| Tape & Reel (TR) | 1000 | $ 1.23 | ||
| 3000 | $ 1.21 | |||
| 5000 | $ 1.19 | |||
Description
General part information
AQV214 Series
Solid State SPST-NO (1 Form A) 6-SOP (0.173", 4.40mm)
