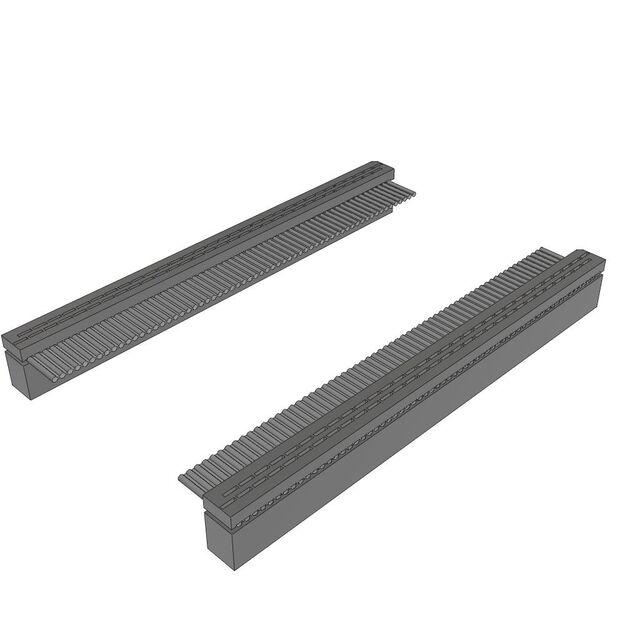

IDSD-31-D-02.50-G

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Rows	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Positions	Shielding	Contact Finish	Pitch - Cable	Pitch - Cable	Length	Length	Length [x]	Length [x]	Length [x]	Length
Samtec Inc. IDSD-31-D-14.00-P01-G	Socket to Socket	2	0.1 in	2.54 mm	IDC	62	Unshielded	Gold	0.05 "	1.27 mm	355.6 mm	1.17 ft
Samtec Inc. IDSD-31-D-02.50-G	Socket to Socket	2	0.1 in	2.54 mm	IDC	62	Unshielded	Gold	0.05 "	1.27 mm			2.5 in	63.5 mm	2.496 in
Samtec Inc. IDSD-31-D-08.00-G	Socket to Socket	2	0.1 in	2.54 mm	IDC	62	Unshielded	Gold	0.05 "	1.27 mm	203.2 mm	0.667 ft				8 in
Samtec Inc. IDSD-31-D-05.50-G-R	Socket to Socket Reversed	2	0.1 in	2.54 mm	IDC	62	Unshielded	Gold	0.05 "	1.27 mm			5.5 in	139.7 mm	0.458 ft
Samtec Inc. IDSD-31-S-04.00-G	Socket to Cable	2	0.1 in	2.54 mm	IDC	62	Unshielded	Gold	0.05 "	1.27 mm			4 "	101.6 mm	0.333 ft
Samtec Inc. IDSD-31-D-06.25-G	Socket to Socket	2	0.1 in	2.54 mm	IDC	62	Unshielded	Gold	0.05 "	1.27 mm			6.25 in	158.75 mm	0.521 ft
Samtec Inc. IDSD-31-D-02.00-G	Socket to Socket	2	0.1 in	2.54 mm	IDC	62	Unshielded	Gold	0.05 "	1.27 mm	50.8 mm	0.167 '				2 "
Samtec Inc. IDSD-31-D-05.00-G	Socket to Socket	2	0.1 in	2.54 mm	IDC	62	Unshielded	Gold	0.05 "	1.27 mm			5 "	127 mm	0.417 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

62 Position Cable Assembly Rectangular Socket to Socket 0.208' (63.50mm, 2.50")

Technical documentation and resources
