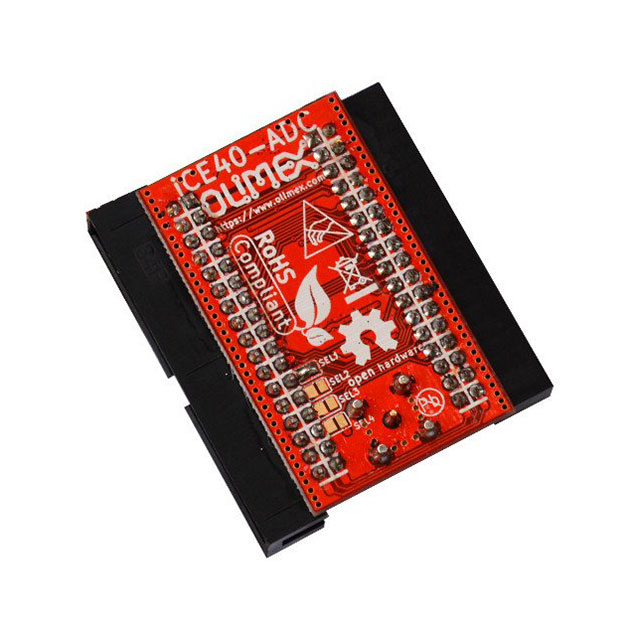

ICE40-ADC

Olimex LTD

EXTENSION MODULE FOR ICE40HX1K-E

Search across all available documentation for this part.

Olimex LTD

EXTENSION MODULE FOR ICE40HX1K-E

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ICE40-ADC	ICE40 Series

Contents	Board(s)	Board(s)
Function	Analog to Digital Converter (ADC)	Digital to Analog Converter (DAC), Analog to Digital Converter (ADC)
Platform	-	iCE40 HX FPGA
Suggested Programming Environment	-	IceStorm, iCEcube2, WinICEProg
Type	Data Acquisition	Data Acquisition
Utilized IC / Part	ADC08100	THS5641A, iCE40HX8K, ADC08100

EXTENSION MODULE FOR ICE40HX1K-E

Part	Function	Utilized IC / Part	Type	Contents	Platform	Suggested Programming Environment
Olimex LTD ICE40-DAC	Digital to Analog Converter (DAC)	THS5641A	Data Acquisition	Board(s)
Olimex LTD ICE40HX8K-EVB		iCE40HX8K		Board(s)	iCE40 HX FPGA	iCEcube2, IceStorm, WinICEProg
Olimex LTD ICE40-ADC	Analog to Digital Converter (ADC)	ADC08100	Data Acquisition	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.21

General part information

ADC08100 Analog to Digital Converter (ADC) Data Acquisition Platform Evaluation Expansion Board
