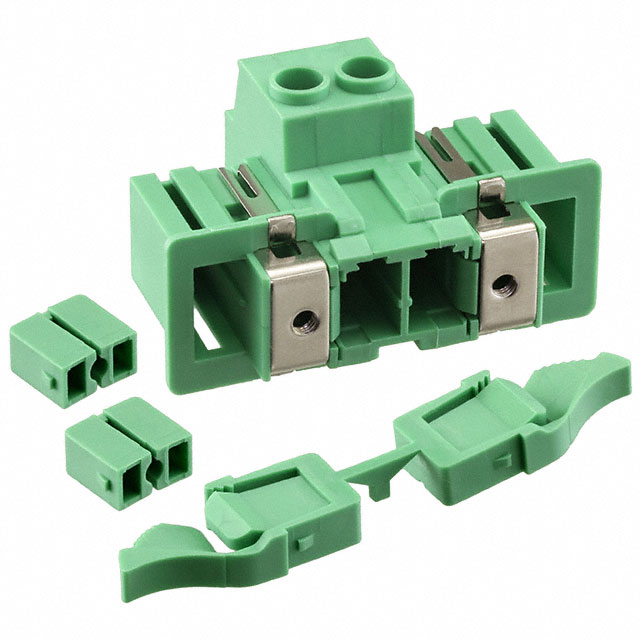

PLUGGABLE TERMINAL BLOCKS 2 POS 7.62MM PITCH FEED THROUGH HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 2 POS 7.62MM PITCH FEED THROUGH HEADER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1716616	DFK-PC Series

Color	Green	Green
Current - UL	41 A	20 - 55 A
Features	Shield Connection Front Side, Threaded Mating Lock	Shield Connection Front Side, Threaded Mating Lock
Front Panel Wire Connection	Header, Male Pins	Header, Male Pins
Number of Levels	1	1
Panel Mount Type	2 Piece, Snap Lock - Front Flange	2 Piece, Snap Lock - Front Flange, Screw Mount - Front Flange
Panel Thickness	3 mm, 1 mm	1 - 3 mm
Panel Thickness [Max]	0.118 in	0.118 in
Panel Thickness [Min]	0.039 in	0.039 in
Pitch [x]	0.3 in	0.3 - 0.4 in
Pitch [x]	7.62 mm	7.62 - 10.16 mm
Positions Per Level	2	2 - 8
Rear Panel Wire Connection	Bolt/Screw Clamp, Wire Entry Parallel to Panel	Bolt/Screw Clamp, Wire Entry Parallel to Panel
Voltage - UL	-	300 V
Width [x]	49.86 mm	49.86 - 100.72 mm
Width [x]	1.963 in	1.963 - 3.965 in
Wire Gauge [Max]	24 AWG	20 - 24 AWG
Wire Gauge [Min]	8 AWG	6 - 8 AWG

Pluggable Terminal Blocks 2 Pos 7.62mm pitch Feed Through Header

Part	Number of Levels	Front Panel Wire Connection	Current - UL	Wire Gauge [Min]	Wire Gauge [Max]	Rear Panel Wire Connection	Panel Thickness [Max]	Panel Thickness	Panel Thickness [Min]	Panel Mount Type	Width [x]	Width [x]	Positions Per Level	Pitch [x]	Pitch [x]	Color	Features	Voltage - UL
Phoenix Contact 1716632	1	Header, Male Pins	41 A	8 AWG	24 AWG	Bolt/Screw Clamp, Wire Entry Parallel to Panel	0.118 in	1 mm, 3 mm	0.039 in	2 Piece, Snap Lock - Front Flange	2.563 in	65.1 mm	4	0.3 in	7.62 mm	Green	Shield Connection Front Side, Threaded Mating Lock
Phoenix Contact 1703438	1	Header, Male Pins	55 A	6 AWG	20 AWG	Bolt/Screw Clamp, Wire Entry Parallel to Panel	0.118 in	1 mm, 3 mm	0.039 in	2 Piece, Snap Lock - Front Flange	3.965 in	100.72 mm	8	0.4 in	10.16 mm	Green
Phoenix Contact 1861219	1	Header, Male Pins	20 A							Screw Mount - Front Flange	2.999 in	76.18 mm	8	0.3 in	7.62 mm	Green	Threaded Mating Lock	300 V
Phoenix Contact 1716616	1	Header, Male Pins	41 A	8 AWG	24 AWG	Bolt/Screw Clamp, Wire Entry Parallel to Panel	0.118 in	1 mm, 3 mm	0.039 in	2 Piece, Snap Lock - Front Flange	1.963 in	49.86 mm	2	0.3 in	7.62 mm	Green	Shield Connection Front Side, Threaded Mating Lock
