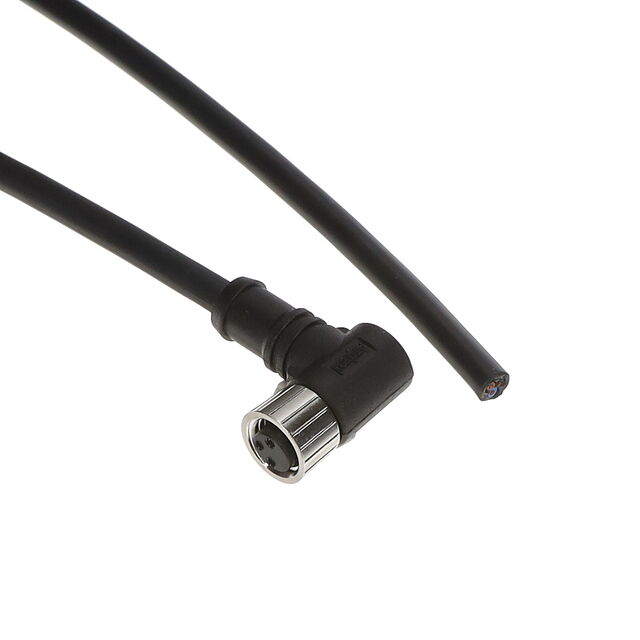

8-03BFFM-SR7B01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, METAL, 3A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLD

Deep-Dive with AI

Search across all available documentation for this part.

8-03BFFM-SR7B01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, METAL, 3A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8-03BFFM-SR7B01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

8-03BFFM Series

Part	Shielding	Cable Material	1st Connector Gender	Assembly Configuration	1st Connector Number of Positions	Ingress Protection	1st Connector Number of Positions Loaded	2nd Connector Type	Length [x]	Length [x]	Cable Type	Usage	1st Connector Type	1st Connector Mounting Type	1st Connector Shell Size - Insert	Color
Amphenol LTW 8-03BFFM-SL7A02	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads	2 m	6.56 ft	Round	Industrial Environments	Receptacle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SR7B10	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads			Round	Industrial Environments	Receptacle Right Angle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SL7B01	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads	1 m	3.28 ft	Round	Industrial Environments	Receptacle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SR7B02	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads	2 m	6.56 ft	Round	Industrial Environments	Receptacle Right Angle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SL7B10	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads			Round	Industrial Environments	Receptacle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SL7B05	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads			Round	Industrial Environments	Receptacle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SL7A10	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads			Round	Industrial Environments	Receptacle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SL7A01	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads	1 m	3.28 ft	Round	Industrial Environments	Receptacle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SR7B01	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads	1 m	3.28 ft	Round	Industrial Environments	Receptacle Right Angle	Free Hanging (In-Line)	M8	Black
Amphenol LTW 8-03BFFM-SR7A10	Unshielded	Polyvinyl Chloride (PVC)	Female Sockets	Standard	3	IP67 - Dust Tight Waterproof	All	Wire Leads			Round	Industrial Environments	Receptacle Right Angle	Free Hanging (In-Line)	M8	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.10
		10	$ 6.04
		30	$ 5.59
		50	$ 5.39
		100	$ 5.15
Newark	Each	10	$ 8.23
		25	$ 7.49
		50	$ 7.02
		100	$ 6.74
		250	$ 6.16

Description

General part information

8-03BFFM Series

Circular Cable Assembly Unshielded 3.28' (1.00m)
