74LVC08AMTR

Active

STMicroelectronics

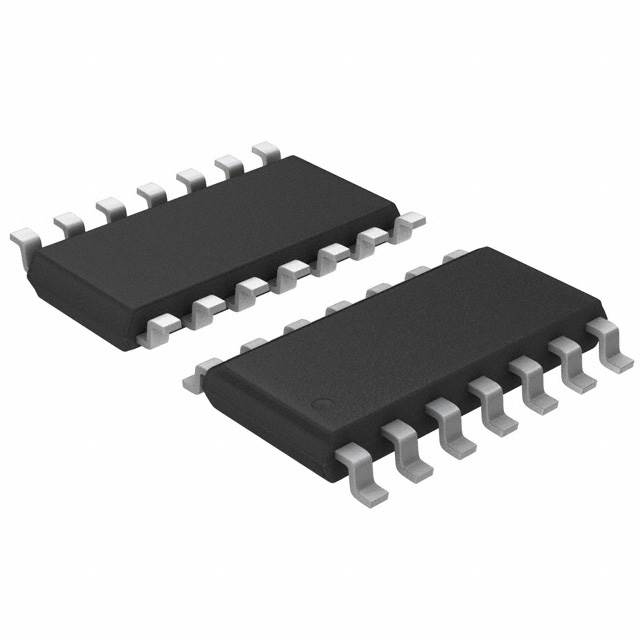

IC GATE AND 4CH 2-INP 14SO

Search across all available documentation for this part.

Documents

Active

STMicroelectronics

IC GATE AND 4CH 2-INP 14SO

Documents

Technical Specifications

Parameters and characteristics for this part

Specification	74LVC08AMTR

Current - Output High, Low [custom]	24 mA
Current - Output High, Low [custom]	24 mA
Current - Quiescent (Max) [Max]	10 µA
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.7 V
Input Logic Level - Low [Max]	0.8 V
Input Logic Level - Low [Min]	0.7 V
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL	5 ns
Mounting Type	Surface Mount
Number of Circuits	4
Number of Inputs	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	3.9 mm
Package / Case	0.154 in
Package / Case	14-SOIC
Supplier Device Package	14-SO
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.65 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC GATE AND 4CH 2-INP 14SO

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Inputs	Number of Circuits	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Mounting Type	Max Propagation Delay @ V, Max CL	Current - Quiescent (Max) [Max]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Package / Case	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
STMicroelectronics 74LVC08AMTR AND Gate IC 4 Channel 14-SO	3.6 V	1.65 V	2	4	AND Gate	24 mA	24 mA	14-SO	0.8 V	0.7 V	Surface Mount	5 ns	10 µA	1.7 V	2 V	3.9 mm	0.154 in	14-SOIC	-55 °C	125 °C

General part information

AND Gate IC 4 Channel 14-SO
