011032PW050

Active

Essentra Components

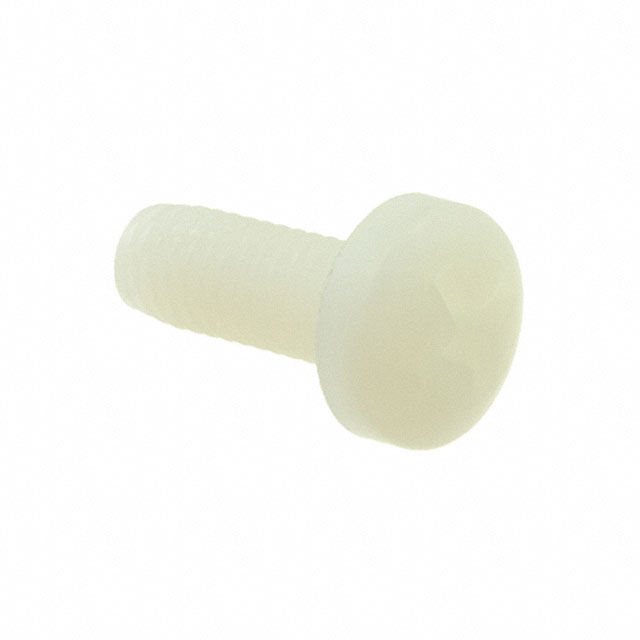

PAN PHILLIPS SCREW 10-32 THREAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

011032PW050

Active

Essentra Components

PAN PHILLIPS SCREW 10-32 THREAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.12
		5	$ 0.11
		10	$ 0.09
		25	$ 0.08
		50	$ 0.07
		100	$ 0.07
		250	$ 0.06
		500	$ 0.06
		1000	$ 0.06

Description

General part information

011032PW Series

#10-32 Pan Head Machine Screw Phillips Drive Nylon

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	011032PW050	011032PW Series

Drive Type	Phillips	Phillips
Head Diameter [diameter]	9.27 mm	9.27 mm
Head Diameter [diameter]	0.365 in	0.365 in
Head Height [z]	0.15 in	0.15 in
Head Height [z]	3.81 mm	3.81 mm
Length - Below Head	12.7 mm	0.875 - 38.1 mm
Length - Below Head	1/2	1/2
Length - Below Head	0.5 in	0.25 - 0.75 in
Length - Below Head	-	4.76 - 31.75 mm
Length - Below Head	-	0.188 - 1.5 in
Length - Below Head	-	0.25 - 22.23 "
Length - Overall	-	0.9 - 1.213 in
Length - Overall	-	22.86 - 48.26 mm
Length - Overall [x]	0.65 "	0.4 - 2.15 "
Length - Overall [x]	16.51 mm	10.16 - 54.61 mm
Material	Nylon	Nylon
Screw Head Type	Pan Head	Pan Head
Thread Size	#10-32	#10-32
Type	Machine Screw	Machine Screw

011032PW Series

PAN PHILLIPS SCREW 10-32 THREAD

Part	Length - Overall [x]	Length - Overall [x]	Head Height [z]	Head Height [z]	Length - Below Head	Length - Below Head	Length - Below Head	Type	Thread Size	Material	Drive Type	Head Diameter [diameter]	Head Diameter [diameter]	Screw Head Type	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Overall	Length - Overall
Essentra Components 011032PW050	0.65 "	16.51 mm	0.15 in	3.81 mm	12.7 mm	1/2	0.5 in	Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head
Essentra Components 011032PW125	1.4 in	35.56 mm	0.15 in	3.81 mm				Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head	31.75 mm	1.25 in
Essentra Components 011032PW200	2.15 in	54.61 mm	0.15 in	3.81 mm				Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head
Essentra Components 011032PW018			0.15 in	3.81 mm				Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head	4.76 mm	0.188 in
Essentra Components 011032PW075			0.15 in	3.81 mm	19.05 mm		0.75 "	Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head			0.75 "	0.9 in	22.86 mm
Essentra Components 011032PW150	1.65 in	41.91 mm	0.15 in	3.81 mm	38.1 mm			Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head		1.5 in
Essentra Components 011032PW087			0.15 in	3.81 mm	0.875 in			Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head		0.875 in	22.23 mm
Essentra Components 011032PW025	0.4 in	10.16 mm	0.15 in	3.81 mm	6.35 mm		0.25 in	Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head			0.25 in
Essentra Components 011032PW175	1.9 in		0.15 in	3.81 mm				Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head					48.26 mm
Essentra Components 011032PW106			0.15 in	3.81 mm				Machine Screw	#10-32	Nylon	Phillips	9.27 mm	0.365 in	Pan Head				1.213 in	30.81 mm
