Connectors, Interconnects

87133-1

Active

TE Connectivity Raychem Cable Protection

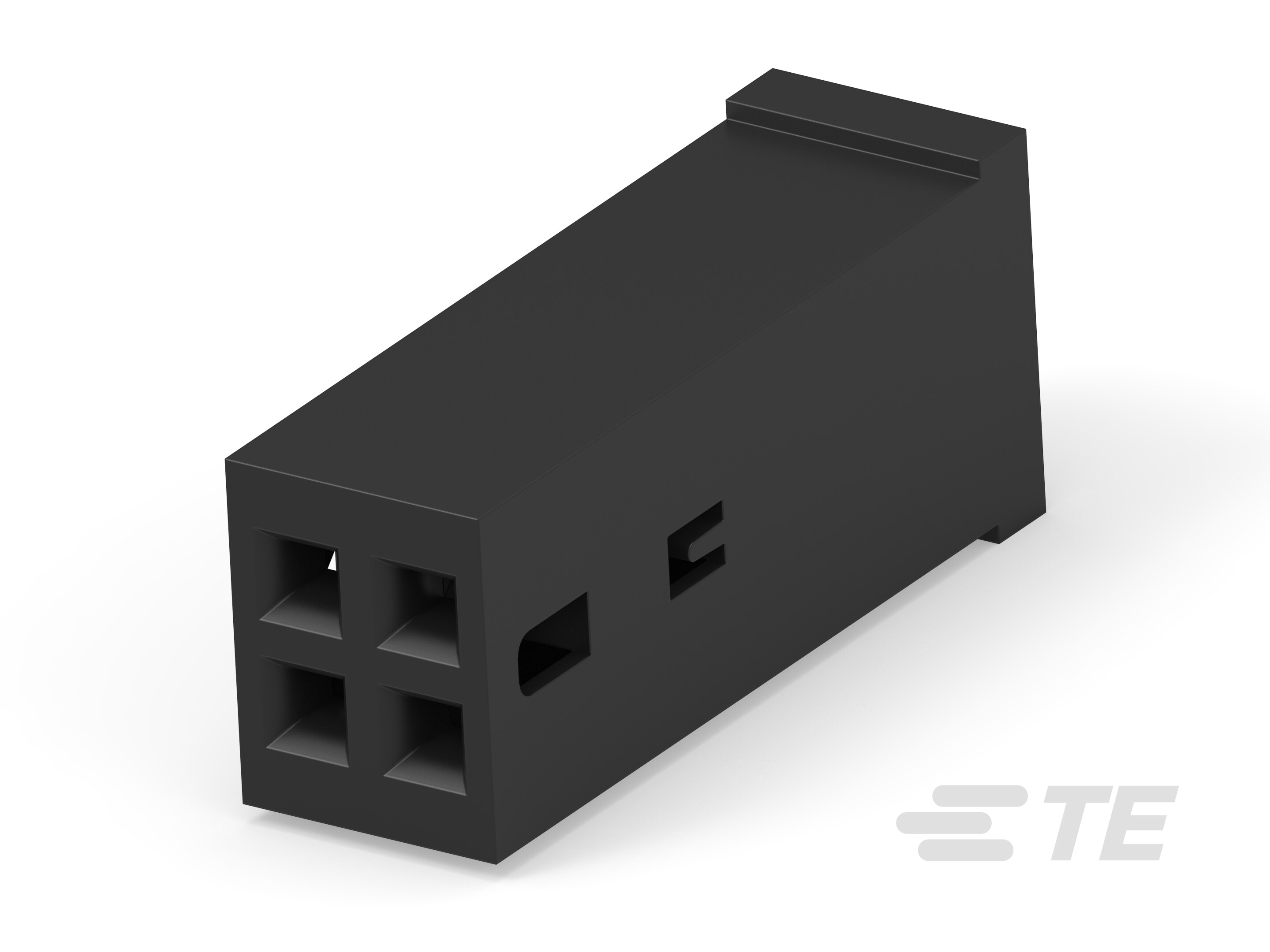

CONN RCPT HSG 4POS 2.54MM

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Color	Number of Positions	Connector Type	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Mounting Type	Note	Contact Type	Number of Rows	Insulation Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection 1-87133-3	Crimp	Black	16	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2
TE Connectivity Raychem Cable Protection 87133-7	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	Polyester Glass Filled	6	-65 ░C	105 ░C
TE Connectivity Raychem Cable Protection 87133-1	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	Polyester Glass Filled	4	-65 ░C	105 ░C
TE Connectivity Raychem Cable Protection 87133-8	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	Polyester Glass Filled	6	-65 ░C	105 ░C
TE Connectivity Raychem Cable Protection 87133-2	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	Polyester Glass Filled	10	-65 ░C	105 ░C
TE Connectivity Raychem Cable Protection 87133-9	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	Polyester Glass Filled	8	-65 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
