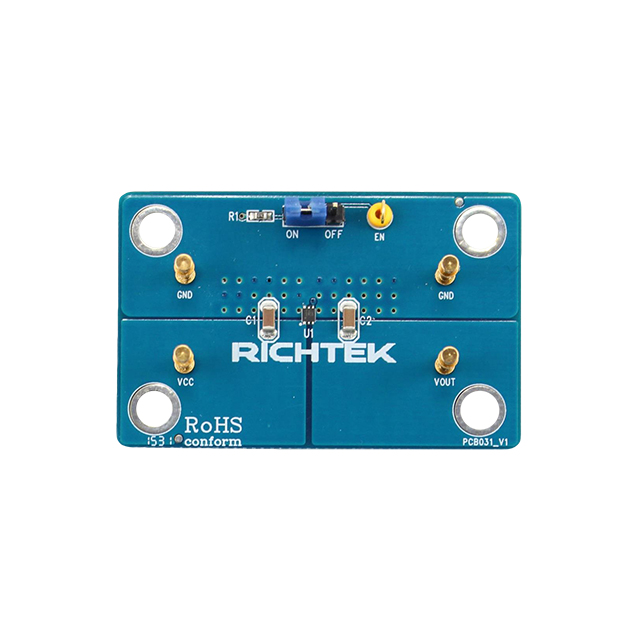

EVB_RT9069-33GQU

Active

Richtek USA Inc.

EVAL MODULE FOR RT9069-33GQU

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT9069-33GQU

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output	Current - Output	Board Type	Utilized IC / Part	Regulator Type	Supplied Contents	Channels per IC	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Package / Case	Package / Case	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Output Type	Supplier Device Package	Mounting Type	Current - Quiescent (Iq)	Output Configuration	Control Features	Number of Regulators	Protection Features	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)
Richtek USA Inc. EVB_RT9069-33GQU	3.3 V	200 mA	Fully Populated	RT9069	Positive Fixed	Board(s)	1 - Single	3.5 V	36 V
Richtek USA Inc. RT9069-50GSP		200 mA								0.154 in	8-SOIC	3.9 mm	5 µA	85 °C	-40 °C	0.36 V	1.81 mOhm	8-SOP-EP	Surface Mount	3.5 µA	Positive	Enable	1	Over Current Over Temperature	36 V	5 V
Richtek USA Inc. RT9069-C0GX5		200 mA									SOT-89-5/6		5 µA	85 °C	-40 °C	0.36 V	1.81 mOhm	SOT-89-5	Surface Mount	3.5 µA	Positive	Enable	1	Over Current Over Temperature	36 V	12 V
Richtek USA Inc. RT9069-50GX5		200 mA									SOT-89-5/6		5 µA	85 °C	-40 °C	0.36 V	1.81 mOhm	SOT-89-5	Surface Mount	3.5 µA	Positive	Enable	1	Over Current Over Temperature	36 V	5 V
Richtek USA Inc. RT9069-C0GB		200 mA									SC-74A SOT-753		5 µA	85 °C	-40 °C	0.36 V	1.81 mOhm	SOT-23-5	Surface Mount	3.5 µA	Positive	Enable	1	Over Current Over Temperature	36 V	12 V
Richtek USA Inc. RT9069-90GX5		200 mA									SOT-89-5/6		5 µA	85 °C	-40 °C	0.36 V	1.81 mOhm	SOT-89-5	Surface Mount	3.5 µA	Positive	Enable	1	Over Current Over Temperature	36 V	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RT9069 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board

Technical documentation and resources

No documents available
