430-10-264-00-240000

Active

Mill-Max Manufacturing Corp.

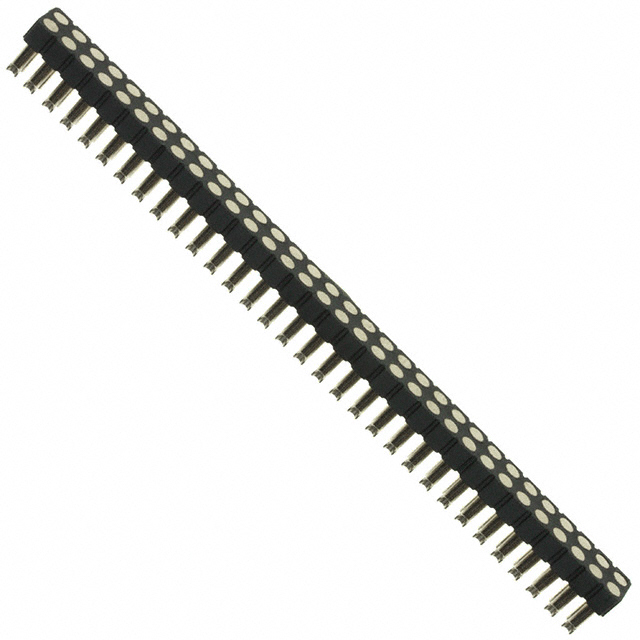

CONN SPRING TARGET 64POS SLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

430-10-264-00-240000

Active

Mill-Max Manufacturing Corp.

CONN SPRING TARGET 64POS SLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	430-10-264-00-240000

Connector Type	Mating Target
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Brass Alloy
Mounting Type	Solder Cup, Through Hole
Number of Contacts	64
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

430-10 Series

Part	Material	Row Spacing [x]	Row Spacing	Number of Contacts	Number of Rows	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 430-10-222-00-240000	Brass Alloy	0.1 in	2.54 mm	22	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 430-10-240-00-240000	Brass Alloy	0.1 in	2.54 mm	40	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 430-10-264-00-240000	Brass Alloy	0.1 in	2.54 mm	64	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 430-10-226-00-240000	Brass Alloy	0.1 in	2.54 mm	26	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 430-10-208-00-240000	Brass Alloy	0.1 in	2.54 mm	8	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 430-10-248-00-240000	Brass Alloy	0.1 in	2.54 mm	48	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 430-10-206-00-240000	Brass Alloy	0.1 in	2.54 mm		2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold	6
Mill-Max Manufacturing Corp. 430-10-262-00-240000	Brass Alloy	0.1 in	2.54 mm	62	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 430-10-238-00-240000	Brass Alloy	0.1 in	2.54 mm	38	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 430-10-224-00-240000	Brass Alloy	0.1 in	2.54 mm	24	2	Mating Target	Solder Cup Through Hole	2.54 mm	0.1 in	10 Áin	0.25 Ám	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	54	$ 21.70

Description

General part information

430-10 Series

64 Position Spring Mating Target Connector Through Hole, Solder Cup
