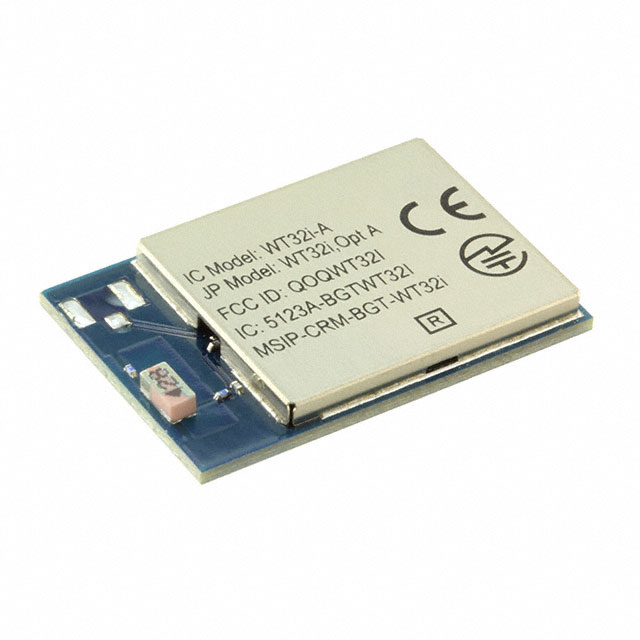

WT32I-A-AI61

Obsolete

Silicon Labs

RF TXRX MOD BLUETOOTH CHIP SMD

Search across all available documentation for this part.

Obsolete

Silicon Labs

RF TXRX MOD BLUETOOTH CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Frequency	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Serial Interfaces	Antenna Type	Package / Case	RF Family/Standard	Mounting Type	Protocol	Power - Output	Memory Size
Silicon Labs WT32I-A-AI61	2.4 GHz	BlueCore5	3.6 V	1.8 V	85 °C	-40 °C	-90 dBm	I2C I2S SPI UART	Integrated Chip	Module	Bluetooth	Surface Mount	Bluetooth v3.0	6.5 dBm	16 MB
Silicon Labs WT32I-A-AI6	2.4 GHz	BlueCore5	3.6 V	1.8 V	85 °C	-40 °C	-91 dBm	I2S PIO SPI UART USB	Integrated Chip	Module	Bluetooth	Surface Mount	Bluetooth v3.0	6.5 dBm	16 MB
Silicon Labs WT32I-A-AI61IAP		BlueCore5								Module		Surface Mount
Silicon Labs WT32I-A-AI6-APTX	2.4 GHz	BlueCore5	3.6 V	1.8 V	85 °C	-40 °C	-91 dBm	I2C I2S PCM PIO SPI UART USB	Integrated Chip	Module	Bluetooth	Surface Mount	Bluetooth v3.0	8 dBm	16 MB
Silicon Labs WT32I-A-AI6IAPC		BlueCore5								Module		Surface Mount
Silicon Labs WT32I-A-AI6C		BlueCore5								Module		Surface Mount
Silicon Labs WT32I-E-AI6IAP		BlueCore5							Antenna Not Included U.FL	Module		Surface Mount
Silicon Labs WT32I-E-AI6	2.4 GHz	BlueCore5	3.6 V	1.8 V	85 °C	-40 °C	-91 dBm	I2S PIO SPI UART USB	Antenna Not Included U.FL	Module	Bluetooth	Surface Mount	Bluetooth v3.0	6.5 dBm	16 MB
Silicon Labs WT32I-E-AI61-APTX		BlueCore5								Module		Surface Mount
Silicon Labs WT32I-A-AI61-APTX	2.4 GHz	BlueCore5	3.6 V	1.8 V	85 °C	-40 °C	-91 dBm	I2C I2S PCM PIO SPI UART USB	Integrated Chip	Module	Bluetooth	Surface Mount	Bluetooth v3.0	8 dBm	16 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v3.0 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
