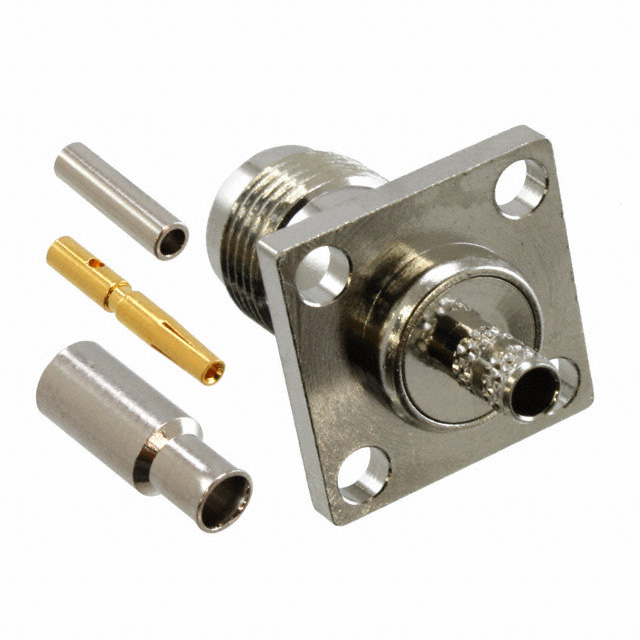

CONN TNC JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN TNC JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	122246

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs, 1 pcs
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Feature	Connector Style	Voltage Rating	Includes	Body Finish	Center Contact Material	Cable Group	Dielectric Material	Center Contact Plating	Housing Color	Contact Termination	Mating Cycles	Number of Ports	Frequency - Max [Max]	Connector Type	Shield Termination	Impedance	Body Material	Includes	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type
Amphenol RF 122246	Flange	TNC	500 V	1 pcs 1 pcs 1 pcs 1 pcs 1 pcs	Nickel	Beryllium Copper	188 188A 316 LMR-100 M17/119-RG174 RG-174	Polyoxymethylene (POM) Acetal	Gold	Silver	Crimp	500	1	11 GHz	Female Socket Jack	Crimp	50 Ohms	Brass
Amphenol RF 122274		TNC			Nickel	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polyoxymethylene (POM)	Gold	Silver	Solder	500	1	11 GHz	Male Pin Plug	Clamp	50 Ohms	Brass	Braid Clamp Connector Contact Gasket Insulator Nut Washer	Free Hanging (In-Line)	85 °C	-40 °C
Amphenol RF 122230	Flange	TNC	500 V		Nickel	Phosphor Bronze	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	Gold	Silver	Crimp	500	1	11 GHz	Female Socket Jack	Crimp	50 Ohms	Brass	1 Connector 1 Contact 1 Ferrule
Amphenol RF 122205	Bulkhead	TNC			Nickel	Phosphor Bronze	RG-59	Polytetrafluoroethylene (PTFE)	Gold		Crimp	500	1	1 GHz	Female Socket Jack		75 Ohms	Brass	1 Connector 1 Contact 1 Ferrule 1 Nut 1 Washer		85 °C	-40 °C	Snap-On
