251I,GY

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	251I,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	119.29 g
Weight	0.263 lb

Part	Features	Features	Design	Container Type	Area (L x W)	Area (L x W)	Material Flammability Rating	Height [z]	Height [z]	Ratings	Material	Thickness	Thickness	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color
Serpac 251I,GY	Battery Compartment PCB Supports	9 V	Hand Held Split Sides	Box	18.3 in²	118 cm²	UL94 HB	38.1 mm	1.5 in	IP40 NEMA 1	Plastic ABS	2.54 mm	0.1 in	119.29 g	0.263 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Gray
Serpac 251I,BK	Battery Compartment PCB Supports	9 V	Hand Held Split Sides	Box	18.3 in²	118 cm²	UL94 HB	38.1 mm	1.5 in	IP40 NEMA 1	Plastic ABS	2.54 mm	0.1 in	119.29 g	0.263 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Black
Serpac 251I,AL	Battery Compartment PCB Supports	9 V	Hand Held Split Sides	Box	18.3 in²	118 cm²	UL94 HB	38.1 mm	1.5 in	IP40 NEMA 1	Plastic ABS	2.54 mm	0.1 in	119.29 g	0.263 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Almond

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

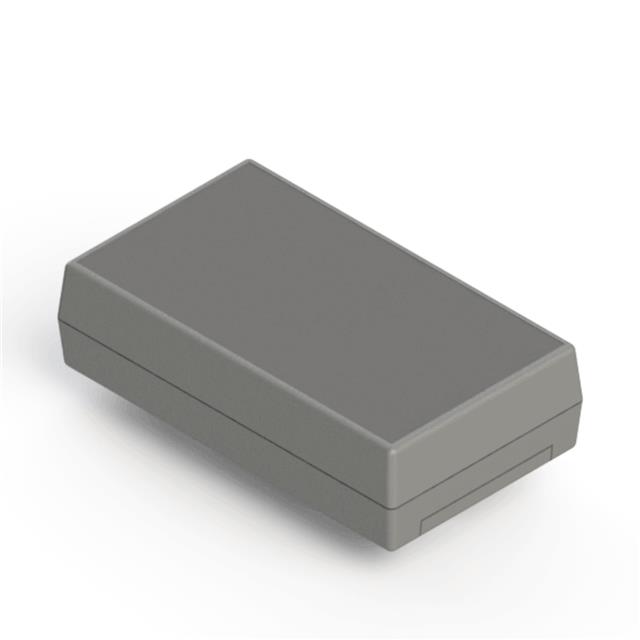

Box Plastic, ABS Gray Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 1.500" (38.10mm)
