ER0989-000

Active

TE Connectivity Raychem Cable Protection

FEP-047-030-008-X-48IN

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

FEP-047-030-008-X-48IN

Technical Specifications

Parameters and characteristics for this part

Specification	ER0989-000

Color	Clear
Inner Diameter - Recovered [diameter]	0.023 in
Inner Diameter - Recovered [diameter]	0.58 mm
Inner Diameter - Supplied [diameter]	1.27 mm
Inner Diameter - Supplied [diameter]	0.05 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Fluorinated Ethylene Propylene (FEP)
Operating Temperature [Max]	190 °C
Operating Temperature [Min]	-70 °C
Recovered Wall Thickness	0.008 in
Recovered Wall Thickness	0.2 mm
Shrink Temperature	210 °C
Shrinkage Ratio [Max]	1.6
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Shrink Temperature	Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness
TE Connectivity Raychem Cable Protection ER0989-000	1.27 mm	0.05 in	35 °C	0 °C	Clear	210 °C	Fluorinated Ethylene Propylene (FEP)	1.22 m	4 ft	-70 °C	190 °C	Tubing Semi Rigid	0.023 in	0.58 mm	1	1.6	0.008 in	0.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 6.31

General part information

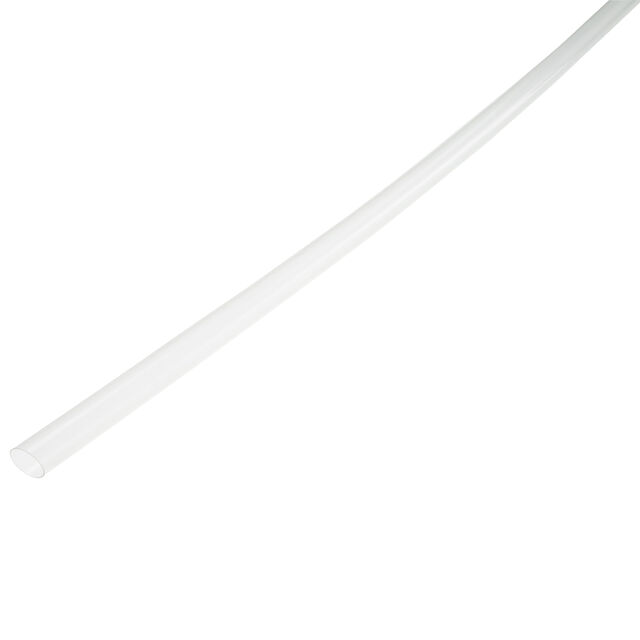

Heat Shrink Tubing, Semi Rigid 0.050" (1.27mm) 1.6 to 1 Clear 4.00' (1.22m)
