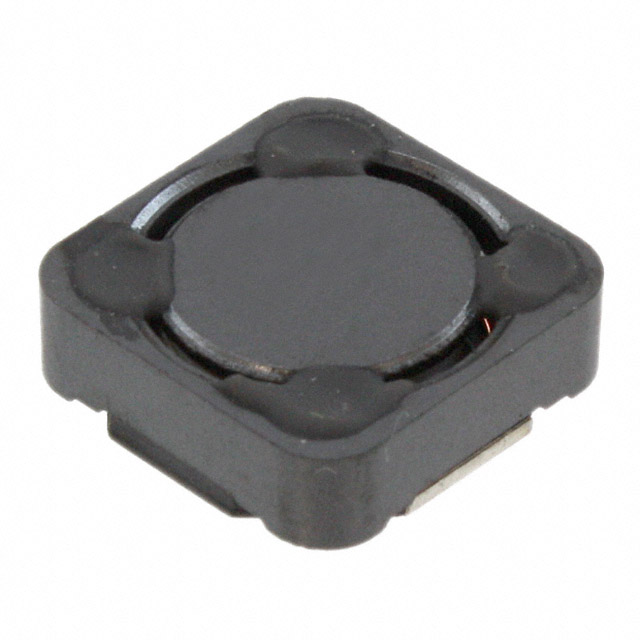

PM124SH-100M-RC

Active

Bourns Inc.

FIXED IND 10UH 4A 32 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM124SH-100M-RC

Active

Bourns Inc.

FIXED IND 10UH 4A 32 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM124SH-100M-RC

Current - Saturation (Isat)	4 A
Current Rating (Amps)	4 A
DC Resistance (DCR) [Max]	32 mOhm
Frequency - Self Resonant	27 MHz
Height - Seated (Max)	4.5 mm
Height - Seated (Max) [Max]	0.177 "
Inductance	10 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	2.52 MHz, 17
Shielding	Shielded
Size / Dimension [x]	0.492 in
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	0.492 "
Size / Dimension [y]	12.5 mm
Tolerance	20 %
Type	Wirewound, Drum Core

PM124SH Series

Part	Package / Case	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Inductance	Mounting Type	Inductance Frequency - Test	Q @ Freq	DC Resistance (DCR)
Bourns Inc. PM124SH-101M-RC	Nonstandard	300 mOhm	8 MHz	20 %	1.25 A	1.2 A	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	100 µH	Surface Mount	100 kHz	14 796 kHz
Bourns Inc. PM124SH-100M-RC	Nonstandard	32 mOhm	27 MHz	20 %	4 A	4 A	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	10 µH	Surface Mount	100 kHz	2.52 MHz 17
Bourns Inc. PM124SH-120M-RC	Nonstandard	38 mOhm	25 MHz	20 %	3.8 A	3.6 A	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	12 µH	Surface Mount	100 kHz	2.52 MHz 16
Bourns Inc. PM124SH-6R8M-RC	Nonstandard	23 mOhm	34 MHz	20 %	5.2 A	4.7 A	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	6.8 µH	Surface Mount	100 kHz	7.96 MHz 14
Bourns Inc. PM124SH-150M-RC	Nonstandard	47 mOhm	22 MHz	20 %	3.5 A	3.2 A	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	15 µH	Surface Mount	100 kHz	2.52 MHz 16
Bourns Inc. PM124SH-680M-RC	Nonstandard		11 MHz	20 %	1.5 A		Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	68 µH	Surface Mount	100 kHz	2.52 MHz 19	200 mOhm
Bourns Inc. PM124SH-121M-RC	Nonstandard		7.8 MHz	20 %	1.2 A	1.15 A	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite		Surface Mount	100 kHz	12 796 kHz
Bourns Inc. PM124SH-470M-RC	Nonstandard	135 mOhm	13 MHz	20 %	2 A	1.8 A	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	47 µH	Surface Mount	100 kHz	2.52 MHz 19
Bourns Inc. PM124SH-330M-RC	Nonstandard	97 mOhm	15 MHz	20 %		2.1 A	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	33 µH	Surface Mount	100 kHz	2.52 MHz 19
Bourns Inc. PM124SH-181M-RC	Nonstandard	550 mOhm	7 MHz	20 %	0.98 A	950 mA	Drum Core Wirewound	125 °C	-40 °C	Shielded	0.177 "	4.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	180 µH	Surface Mount	100 kHz	12 796 kHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
		10	$ 0.89
		25	$ 0.81
		50	$ 0.76
		100	$ 0.63
		250	$ 0.58
	Digi-Reel®	1	$ 1.05
		10	$ 0.89
		25	$ 0.81
		50	$ 0.76
		100	$ 0.63
		250	$ 0.58
	Tape & Reel (TR)	500	$ 0.55
		1000	$ 0.50
		2500	$ 0.49
		5000	$ 0.47
		12500	$ 0.45

Description

General part information

PM124SH Series

10 µH Shielded Drum Core, Wirewound Inductor 4 A 32mOhm Max Nonstandard
