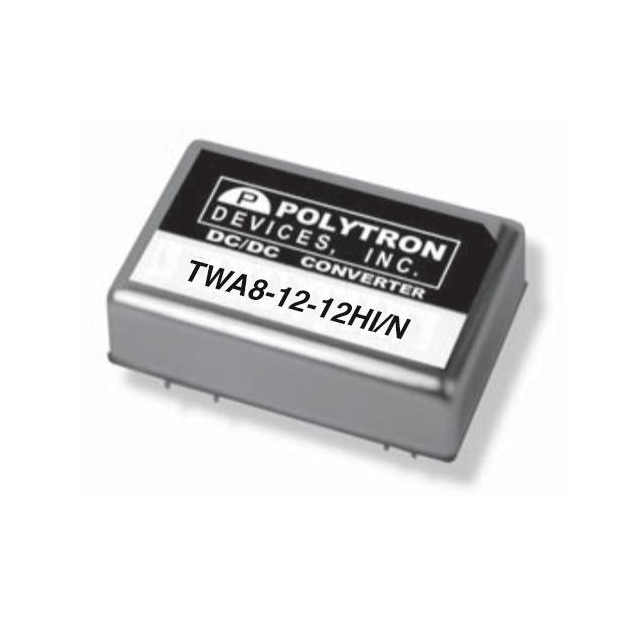

TWA8-12-12HI/N

Active

Polytron

DC DC CONVERTER +/-12V 8W

Search across all available documentation for this part.

Active

Polytron

DC DC CONVERTER +/-12V 8W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER +/-12V 8W

Part	Mounting Type	Type	Features	Voltage - Output 1	Package / Case	Package / Case	Applications	Number of Outputs	Efficiency	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Control Features	Power (Watts)	Voltage - Isolation	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Polytron TWA8-12-12HI/N	Through Hole	Isolated Module	Remote On/Off	12 V	9 PC Pad	24-DIP Module	ITE (Commercial)	2	84 %	-12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Active Low, Enable	8 W	1.5 kV	18 V	333 mA	333 mA	9 V	-25 °C	71 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 333mA, 333mA 9V - 18V Input
