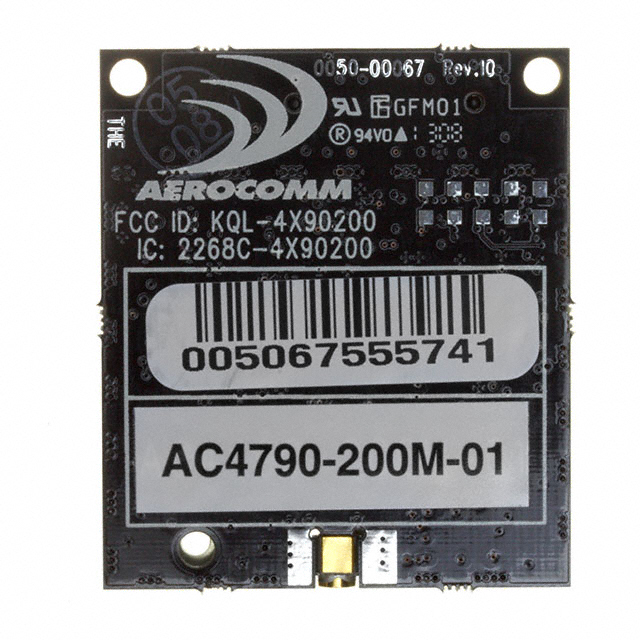

AC4790-200M

Active

Ezurio LLC

RF TXRX MOD ISM<1GHZMMCX SMD

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD ISM<1GHZMMCX SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM < 1GHz Transceiver Module 900MHz Antenna Not Included, MMCX Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AC4790-200M	AC4790 Series

Antenna Type	Antenna Not Included, MMCX	Antenna Not Included, Castellation, Antenna Not Included, MMCX
Current - Receiving	30 mA	30 mA
Current - Transmitting	68 mA	68 - 650 mA
Data Rate	115.2 kbps	115.2 kbps
Frequency	900 MHz	900 MHz
Frequency	-	902 MHz
Frequency	-	928 MHz
Modulation	FSK, FHSS	FSK, FHSS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	28-SMD Module, Module
Power - Output	23 dBmW	10 - 30 dBm
RF Family/Standard	General ISM < 1GHz	General ISM < 1GHz
Sensitivity	-110 dBm	-110 - -99 dBm
Voltage - Supply	-	3.3 V
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	3.3 V	3.3 V

RF TXRX MODULE CASTELLATION SMD

Part	Package / Case	Mounting Type	Modulation	Sensitivity	Voltage - Supply	Frequency [Min]	Frequency [Max]	Antenna Type	Operating Temperature [Min]	Operating Temperature [Max]	Power - Output	RF Family/Standard	Current - Transmitting	Current - Receiving	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency
Ezurio LLC AC4790-1X1	28-SMD Module	Surface Mount	FHSS, FSK	-99 dBm	3.3 V	902 MHz	928 MHz	Antenna Not Included, Castellation	-40 °C	80 C	10 dBm
Ezurio LLC AC4790LR-1000M	Module	Surface Mount	FHSS, FSK	-110 dBm				Antenna Not Included, MMCX	-40 °C	80 C	30 dBm	General ISM < 1GHz	650 mA	30 mA	115.2 kbps	3.3 V	5.5 V	900 MHz
Ezurio LLC AC4790-1000M	Module	Surface Mount	FHSS, FSK	-110 dBm				Antenna Not Included, MMCX	-40 °C	80 C	30 dBm	General ISM < 1GHz	650 mA	30 mA	115.2 kbps	3.3 V	5.5 V	900 MHz
Ezurio LLC AC4790-200M	Module	Surface Mount	FHSS, FSK	-110 dBm				Antenna Not Included, MMCX	-40 °C	80 C	23 dBmW	General ISM < 1GHz	68 mA	30 mA	115.2 kbps	3.3 V	5.5 V	900 MHz
Ezurio LLC AC4790-1000M	Module	Surface Mount	FHSS, FSK	-110 dBm				Antenna Not Included, MMCX	-40 °C	80 C	30 dBm	General ISM < 1GHz	650 mA	30 mA	115.2 kbps	3.3 V	5.5 V	900 MHz
