HS2P2F20-BPE

Active

Switchcraft Inc.

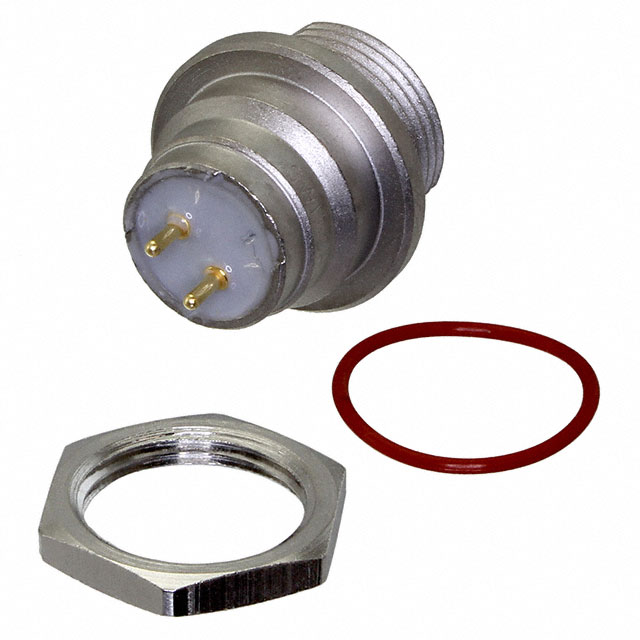

CONN RCPT FMALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 2POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	HS2P2F20-BPE	HS2P2F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	-	UL94 HF-1
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 2POS GOLD SOLDER

Part	Shell Material	Termination	Connector Type	Mounting Type	Contact Material	Fastening Type	Contact Finish - Mating	Number of Positions	Voltage Rating	Applications	Insert Material	Primary Material	Shell Finish	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Color	Shielding	Ingress Protection	Material Flammability Rating
Switchcraft Inc. HS2P2F20-BP	Copper Alloy	Solder	Receptacle, Female Sockets	Panel Mount, Through Hole	Copper Alloy	Push-Pull	Gold	2	125 VAC	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Liquid Crystal Polymer (LCP)	Metal	Electroless Nickel	Bulkhead - Front Side Nut	135 °C	-40 °C	Keyed	Silver	Shielded	IP66, IP67, IP68
Switchcraft Inc. HS2P2F20	Copper Alloy	Crimp, Solder Cup	Receptacle, Female Sockets		Copper Alloy	Push-Pull	Gold	2	125 VAC	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Liquid Crystal Polymer (LCP)	Metal	Electroless Nickel	Bulkhead - Rear Side Nut	135 °C	-40 °C	Keyed	Silver	Shielded	IP66, IP67, IP68	UL94 HF-1
