EN3P3MRAPCBW

Active

Switchcraft Inc.

CONN RCPT MALE 3POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

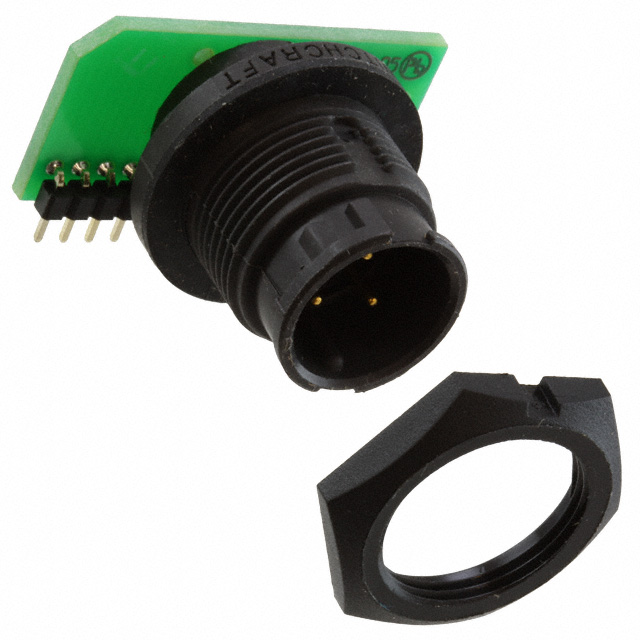

EN3P3MRAPCBW

Active

Switchcraft Inc.

CONN RCPT MALE 3POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.83
		10	$ 6.94
		25	$ 6.67
		50	$ 6.40
		100	$ 6.26

Description

General part information

EN3P3M Series

3 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P3MRAPCBW	EN3P3M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder, Crimp, Solder
Voltage Rating	250 VAC	250 VAC

EN3P3M Series

CONN RCPT MALE 3POS GOLD SOLDER

Part	Primary Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Applications	Ingress Protection	Contact Material	Insert Material	Termination	Contact Finish - Mating	Shielding	Color	Current Rating (Amps)	Mounting Feature	Material Flammability Rating	Connector Type	Fastening Type	Mounting Type
Switchcraft Inc. EN3P3MRAPCBW	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer	Circuit Board, Solder	Gold	Unshielded	Black	5 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P3MRAPCBN	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer	Circuit Board, Solder	Gold	Unshielded	Black	5 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P3M16KX	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer		Gold	Unshielded	Black	13 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock
Switchcraft Inc. EN3P3M16CX	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer	Crimp	Gold	Unshielded	Black	13 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock
Switchcraft Inc. EN3P3MCKX	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer	Crimp	Gold	Unshielded	Black	7.5 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock
Switchcraft Inc. EN3P3MPX	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer	Solder	Gold	Unshielded	Black	7.5 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock	Panel Mount, Through Hole
Switchcraft Inc. EN3P3MX	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer		Gold	Unshielded	Black	7.5 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock
Switchcraft Inc. EN3P3M16CKX	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer	Crimp	Gold	Unshielded	Black	13 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock
Switchcraft Inc. EN3P3M16PX	Plastic	250 VAC	65 °C	-40 °C	Keyed	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Copper Alloy	Elastomer	Solder	Gold	Unshielded	Black	13 A	Bulkhead - Front Side Nut	UL94 V-0	Male Pins, Receptacle	Bayonet Lock	Panel Mount, Through Hole
