2065230024

Active

Molex

MINI50 UNSEALED RECEPTACLE, SINGLE ROW, UL94-HB, WITHOUT CPA, 2 CIRCUITS, POLARIZATION OPTION D, GREEN

2065230024

Active

Molex

MINI50 UNSEALED RECEPTACLE, SINGLE ROW, UL94-HB, WITHOUT CPA, 2 CIRCUITS, POLARIZATION OPTION D, GREEN

Description Specifications Series Pricing CAD Documents

Description

General part information

206523 Series

MINI50 UNSEALED RECEPTACLE, SINGLE ROW, UL94-HB, WITHOUT CPA, 2 CIRCUITS, POLARIZATION OPTION D, GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	2065230024

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Pitch	0.079 in

206523 Series

Part	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Mounting Type	Fastening Type	Color	Contact Termination	Connector Type	Number of Rows	Number of Positions	Insulation Material	Row Spacing	Features
Molex 2065230043	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Gray	Crimp	Receptacle	1	4	Glass Filled Polybutylene Terephthalate (PBT)

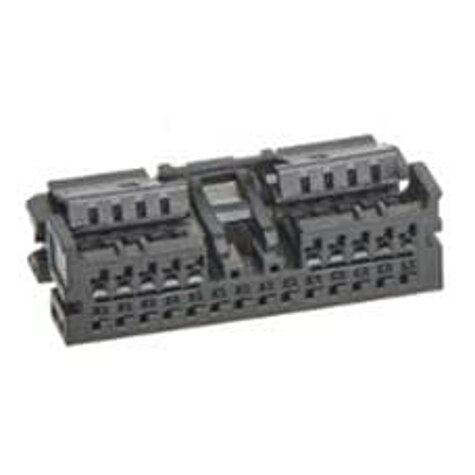

Molex 2065230241	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Black	Crimp	Receptacle	2	24 pos	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in
Molex 2065230201	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Black	Crimp	Receptacle	2	20	Glass Filled Polybutylene Terephthalate (PBT)	0.087 in
Molex 2065232242	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Gray	Crimp	Receptacle	2	24 pos	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in	Connector Position Assurance (CPA)

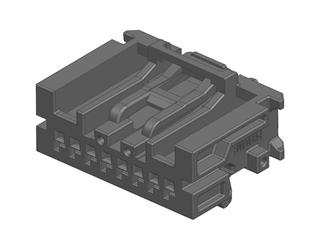

Molex 2065230081	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Black	Crimp	Receptacle	1	8	Glass Filled Polybutylene Terephthalate (PBT)

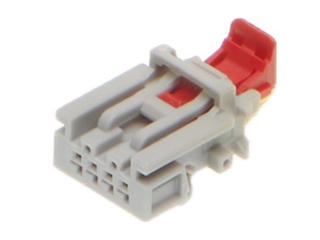

Molex 2065232042	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Gray	Crimp	Receptacle	1	4	Glass Filled Nylon 6/6 Polyamide (PA66)		Connector Position Assurance (CPA)

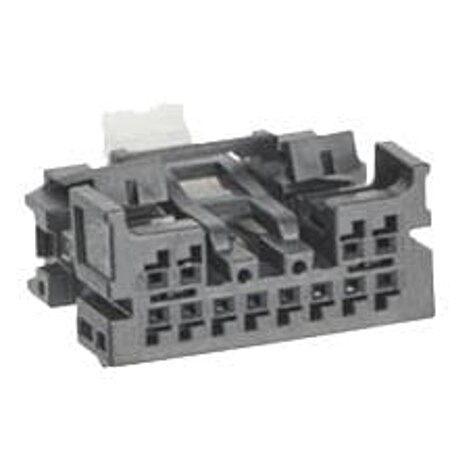

Molex 2065232121	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Red	Crimp	Receptacle	2	12	Glass Filled Nylon 6 Polyamide (PA6)	0.087 in	Connector Position Assurance (CPA)
Molex 2065230024	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Green	Crimp	Receptacle	1	2	Glass Filled Polybutylene Terephthalate (PBT)
Molex 2065230203	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Gray	Crimp	Receptacle	2	20	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in
Molex 2065232241	Female Socket	100 °C	-40 °C	0.079 in	Free Hanging (In-Line)	Latch Lock	Black	Crimp	Receptacle	2	24 pos	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in	Connector Position Assurance (CPA)
