SSL-LX3044GT

Active

Lumex Opto/Components Inc.

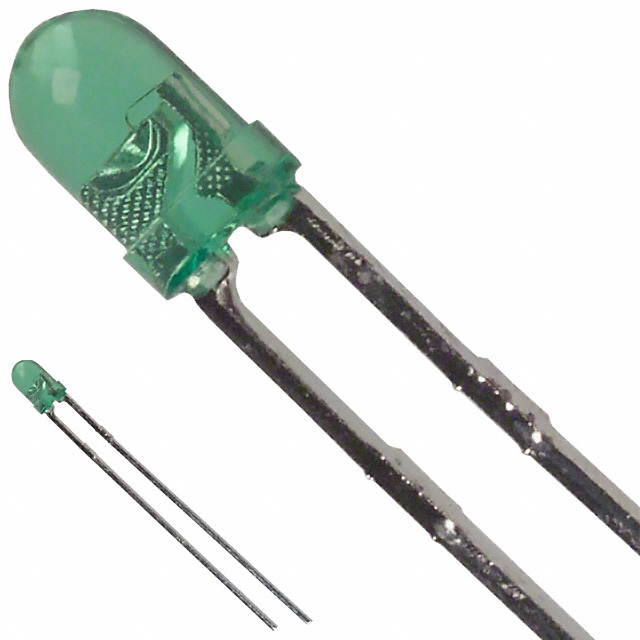

LED GREEN CLEAR T-1 T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX3044GT

Active

Lumex Opto/Components Inc.

LED GREEN CLEAR T-1 T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		10	$ 0.19
		100	$ 0.13
		500	$ 0.09
		1000	$ 0.07
		2000	$ 0.07
		5000	$ 0.07

Description

General part information

SSL-LX3044 Series

Green LED Indication - Discrete 2.2V Radial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX3044GT	SSL-LX3044 Series

Color	Green	Red, Green, Amber, Yellow, Blue, White
Configuration	Standard	Standard, Common Cathode, Independent
Current - Test	20 mA	20 mA
Height (Max)	-	5.73 mm
Height (Max) [Max]	4.6 mm	4.6 mm
Lens Color	Green	Red, White, Colorless, Orange, Green, Blue, Yellow, Amber
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Diffused, Clear
Millicandela Rating	40 mcd	5 - 4500 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Size / Dimension	-	2.9 mm
Supplier Device Package	T-1	T-1, T-1 (3mm)
Viewing Angle	30 °	30 - 80 °
Viewing Angle	-	40 °
Voltage - Forward (Vf) (Typ)	2.2 V	1.7 - 12 V
Wavelength - Peak	565 nm	430 - 700 nm

SSL-LX3044 Series

LED RED DIFFUSED T-1 T/H

Part	Color	Wavelength - Peak	Lens Color	Mounting Type	Lens Size	Lens Size	Voltage - Forward (Vf) (Typ)	Lens Style	Height (Max) [Max]	Configuration	Viewing Angle	Millicandela Rating	Lens Transparency	Supplier Device Package	Package / Case	Current - Test	Height (Max) [Max] [z]	Size / Dimension [diameter]
Lumex Opto/Components Inc. SSL-LX3044ID-5V	Red	635 nm	Red	Through Hole	3 mm	T-1	5 V	Round with Domed Top	4.6 mm	Standard	60 °	6 mcd	Diffused	T-1	Radial
Lumex Opto/Components Inc. SSL-LX3044SRSGW	Green, Red	565 nm, 660 nm	White	Through Hole	3 mm	T-1	1.7 V, 2.2 V	Round with Domed Top	4.6 mm	Common Cathode	60 °	30 mcd, 60 mcd	Diffused	T-1	Radial	20 mA, 20 mA
Lumex Opto/Components Inc. SSL-LX3044AC	Amber	605 nm	Colorless	Through Hole	3 mm	T-1	2.1 V	Round with Domed Top			30 °	80 mcd	Clear	T-1 (3mm)	Radial	20 mA	5.73 mm	2.9 mm
Lumex Opto/Components Inc. SSL-LX3044SOD		610 nm	Orange	Through Hole	3 mm	T-1	2 V	Round with Domed Top	4.6 mm	Standard	60 °	100 mcd	Diffused	T-1	Radial	20 mA
Lumex Opto/Components Inc. SSL-LX3044YC	Yellow	585 nm	Colorless	Through Hole	3 mm	T-1	2.1 V	Round with Domed Top	4.6 mm	Standard	30 °	90 mcd	Clear	T-1	Radial	20 mA
Lumex Opto/Components Inc. SSL-LX3044GT	Green	565 nm	Green	Through Hole	3 mm	T-1	2.2 V	Round with Domed Top	4.6 mm	Standard	30 °	40 mcd	Clear	T-1	Radial	20 mA
Lumex Opto/Components Inc. SSL-LX3044SBD/A	Blue	430 nm	Blue	Through Hole	3 mm	T-1	4.5 V	Round with Domed Top	4.6 mm	Standard	60 °	30 mcd	Diffused	T-1	Radial	20 mA
Lumex Opto/Components Inc. SSL-LX3044HD-5V	Red	700 nm	Red	Through Hole	3 mm	T-1	5 V	Round with Domed Top	4.6 mm	Standard	60 °	5 mcd	Diffused	T-1	Radial
Lumex Opto/Components Inc. SSL-LX3044UEGC	Green	502 nm	Colorless	Through Hole	3 mm	T-1	3.5 V	Round with Domed Top	4.6 mm	Standard	30 °	1100 mcd	Clear	T-1	Radial	20 mA
Lumex Opto/Components Inc. SSL-LX3044SRC/D	Red	660 nm	Colorless	Through Hole	3 mm	T-1	1.8 V	Round with Domed Top	4.6 mm	Standard	30 °	600 mcd	Clear	T-1	Radial	20 mA
