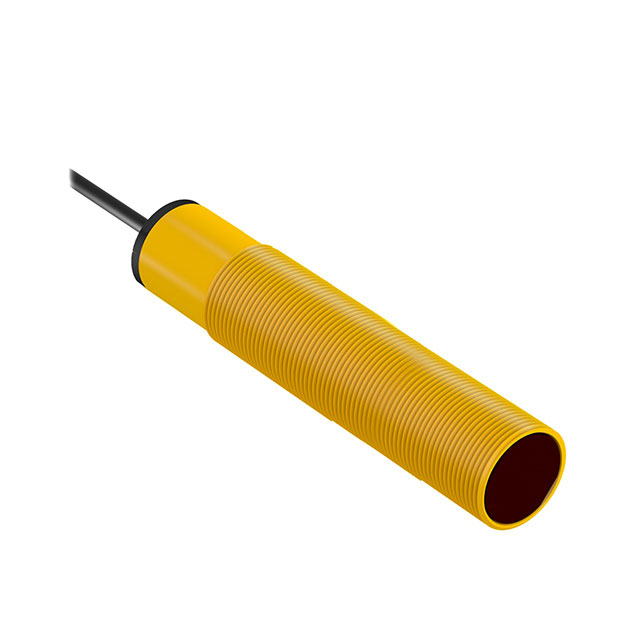

S18RW3D
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, EZ BEAM®, S18 SERIES, DIFFUSE, 100 MM, DARK ON, INFRARED, 20 VAC TO 250 VAC
Deep-Dive with AI
Search across all available documentation for this part.
S18RW3D
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, EZ BEAM®, S18 SERIES, DIFFUSE, 100 MM, DARK ON, INFRARED, 20 VAC TO 250 VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S18RW3D |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IEC IP69K, IEC IP67, NEMA 6P |
| Light Source | Infrared LED |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Response Time | 16 ms |
| Sensing Distance | 3.937 in |
| Sensing Distance | 100 mm |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 250 VAC |
| Voltage - Supply [Min] | 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S18RW3 Series
The S18RW3D is a 3-pin AC voltage Diffuse-mode Photoelectric Sensor with thermoplastic housing and acrylic lens. The S18 series 29822 sensor provides protection against transient voltages. Dark operate output conducts when the sensor sees dark.
