VJD2UTTB-00000-000

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

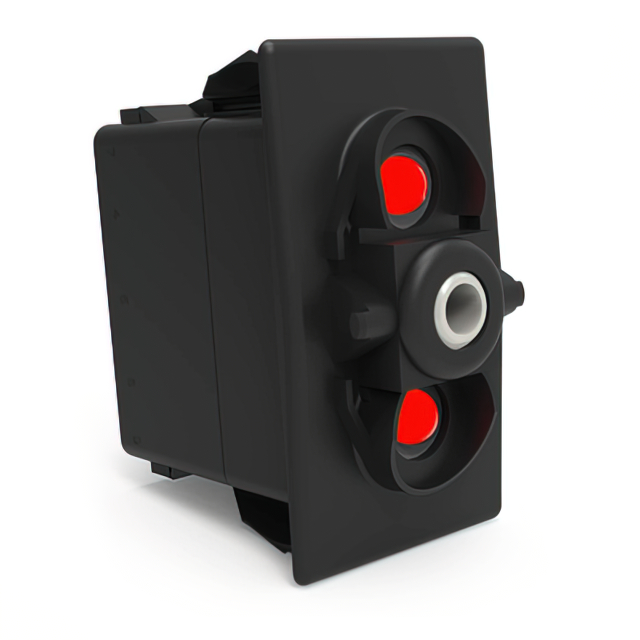

Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	VJD2UTTB-00000-000	VJD2UTTB Series

Actuator Marking	Varies by Cap	High Beam, Vertical, Low Beam, Varies by Cap
Actuator Type	Actuator Arm, Cap Required - Illuminated	Convex (Reverse V) - Illuminated, Actuator Arm, Cap Required - Illuminated
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Circuit	DPDT	DPDT
Color - Actuator/Cap	-	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	100000 Cycles	100000 Cycles
Illumination Type, Color	LED, Red/Red	LED, Red/Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	IP66/IP68	IP66/IP68
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER DPDT 20A 12V

Part	Termination Style	Approval Agency	Actuator Marking	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - DC	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Ingress Protection	Current Rating (Amps)	Actuator Type	Circuit	Mechanical Life	Switch Function	Mounting Type	Illumination Type, Color
Carling Technologies VJD2UTTB-PZCBD-1BF	Quick Connect - 0.250" (6.3mm)	CSA, UL, VDE	High Beam, Low Beam, Vertical	Black	21.08 mm	36.83 mm	12 V	12 VDC	85 °C	-40 °C	100000 Cycles	IP66/IP68	20 A	Convex (Reverse V) - Illuminated	DPDT	100000 Cycles	On-Off-On	Panel Mount, Snap-In	LED, Red/Red
Carling Technologies VJD2UTTB-00000-000	Quick Connect - 0.250" (6.3mm)	CSA, UL, VDE	Varies by Cap		21.08 mm	36.83 mm	12 V	12 VDC	85 °C	-40 °C	100000 Cycles	IP66/IP68	20 A	Actuator Arm, Cap Required - Illuminated	DPDT	100000 Cycles	On-Off-On	Panel Mount, Snap-In	LED, Red/Red
