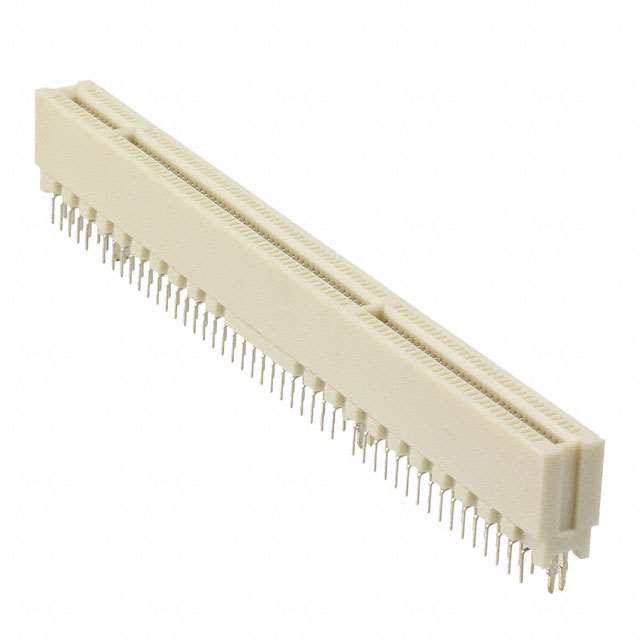

1-145168-2

Active

TE Connectivity Raychem Cable Protection

CONN PCI CARDEDGE FML 184P 0.050

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PCI CARDEDGE FML 184P 0.050

Technical Specifications

Parameters and characteristics for this part

Specification	1-145168-2

Card Thickness	0.062 in
Card Thickness	1.57 mm
Color	Natural
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole
Number of Positions	184
Number of Positions/Bay/Row [custom]	32
Number of Positions/Bay/Row [custom]	11
Number of Positions/Bay/Row [custom]	49
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Read Out	Dual
Termination	Solder, Staggered

Part	Read Out	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Termination	Number of Rows	Gender	Contact Material	Card Thickness	Card Thickness	Material - Insulation	Color	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
TE Connectivity Raychem Cable Protection 1-145168-2	Dual	0.76 Ám	30 Áin	Through Hole	184	0.05 in	1.27 mm	Gold	Solder Staggered	2	Female	Phosphor Bronze	0.062 in	1.57 mm	Thermoplastic	Natural	32	11	49

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

184 Position Female Connector PCI 3.3V 64 Bit Gold 0.050" (1.27mm) Natural

Technical documentation and resources

No documents available
