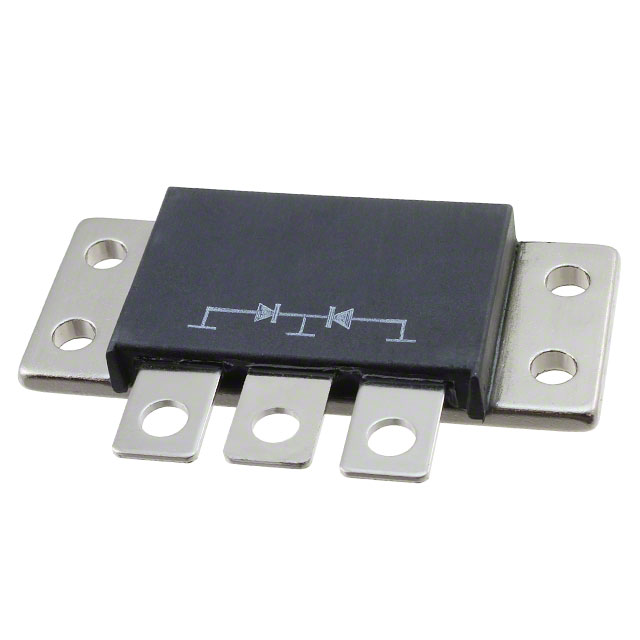

160CMQ040

Active

SMC Diode Solutions

DIODE MOD SCHOTT 40V 80A TO249AA

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOTT 40V 80A TO249AA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	160CMQ040	160CMQ Series

Current - Average Rectified (Io) (per Diode) [custom]	80 A	80 A
Current - Reverse Leakage @ Vr	5 mA	5 mA
Diode Configuration	1 Pair Common Cathode	1 Pair Common Cathode
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	TO-249AA	TO-249AA
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	TO-249AA	TO-249AA
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V	40 - 45 V
Voltage - Forward (Vf) (Max) @ If	860 mV	860 mV

DIODE MOD SCHOTT 40V 80A TO249AA

Part	Current - Average Rectified (Io) (per Diode) [custom]	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Package / Case	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Reverse Leakage @ Vr	Diode Configuration	Speed	Voltage - DC Reverse (Vr) (Max) [Max]
SMC Diode Solutions 160CMQ040	80 A	TO-249AA	150 °C	-55 °C	Schottky	TO-249AA	860 mV	Chassis Mount	5 mA	1 Pair Common Cathode	200 mA, 500 ns	40 V
SMC Diode Solutions 160CMQ045	80 A	TO-249AA	150 °C	-55 °C	Schottky	TO-249AA	860 mV	Chassis Mount	5 mA	1 Pair Common Cathode	200 mA, 500 ns	45 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	528	$ 33.80

General part information

Diode Array 1 Pair Common Cathode 40 V 80A Chassis Mount TO-249AA
