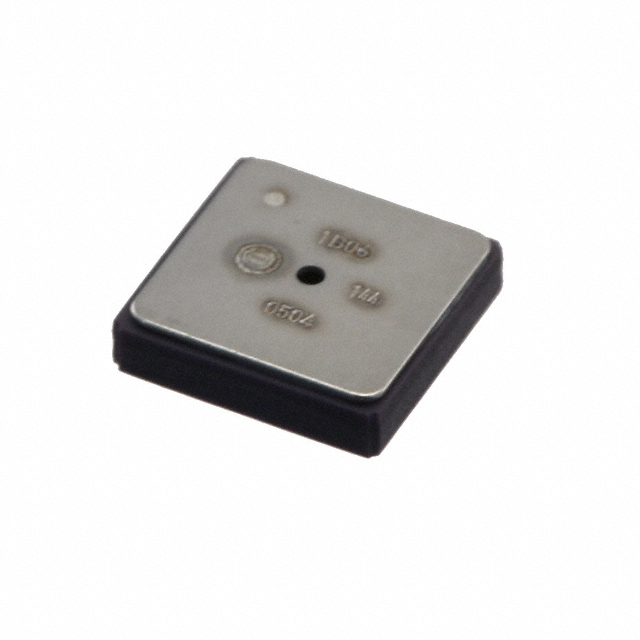

BMP085

Obsolete

Bosch Sensortec

SENSOR 15.95PSIA 19BIT 8LCC

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SENSOR 15.95PSIA 19BIT 8LCC

Technical Specifications

Parameters and characteristics for this part

SENSOR 15.95PSIA 19BIT 8LCC

Part	Output Type	Package / Case	Mounting Type	Applications	Maximum Pressure	Maximum Pressure	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Accuracy	Output [Min]	Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Port Style
Bosch Sensortec BMP085	I2C	8-CLCC	Surface Mount	Board Mount	1000 kPa	145.04 PSI	SMD (SMT) Tab	3.6 V	1.62 V	15.95 PSI	4.35 PSI	110 kPa	30 kPa	2 %	16 b	19 b	85 °C	-40 °C	8-LCC	No Port

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) Absolute 16 ~ 19 b 8-CLCC
