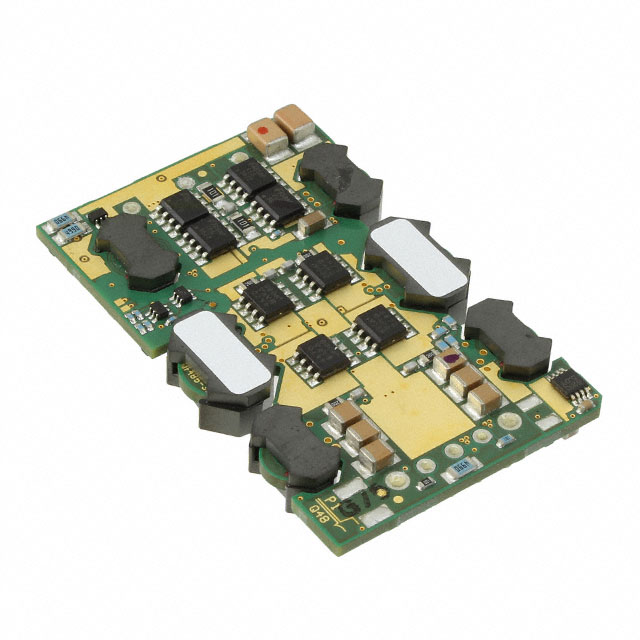

Q48T20050-NAC0G

Active

Bel Power Solutions

DC DC CONVERTER 5V 100W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 5V 100W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 5V 100W

Part	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Applications	Efficiency	Control Features	Type	Voltage - Isolation	Voltage - Output 1	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)
Bel Power Solutions Q48T20050-NAC0G	1	Through Hole	20 A	75 V	OCP, OTP, OVP, Remote On/Off, UVLO	ITE (Commercial)	86 %	Active Low, Enable	Isolated Module	2000 V	5 V	1/4 Brick, 8-DIP Module	36 V	7.7 mm	36.8 mm	2.3 in	58.4 mm	1.45 in	0.3 "	85 °C	-40 °C	100 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input
