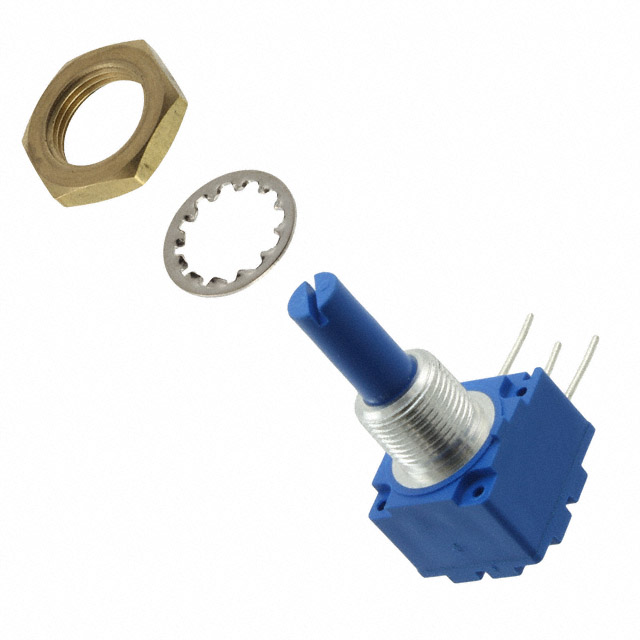

91R1D-R22-A13L

Active

Bourns Inc.

POT 5K OHM 2W CERMET LINEAR

Search across all available documentation for this part.

Active

Bourns Inc.

POT 5K OHM 2W CERMET LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Resistive Material	Taper	Rotation	Temperature Coefficient	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Bushing Thread	Built in Switch	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Actuator Type	Number of Gangs	Number of Turns	Power (Watts)	Resistance (Ohms)	Termination Style	Actuator Length [z]	Actuator Length [z]	Adjustment Type
Bourns Inc. 91R1D-R22-A13L	10 %	Cermet	Linear	300 ░	150 ppm/°C	0.236 in	6 mm	M10 x 0.75		0.687 in	0.625 in	17.45 mm	15.88 mm	Slotted	1	1	2 W	5 kOhms	PC Pins	0.866 in	22 mm	Side Adjustment
Bourns Inc. 91R1D-R22-B20L	20 %	Conductive Plastic	Linear	300 ░	1000 ppm/°C	0.236 in	6 mm	M10 x 0.75		0.687 in	0.625 in	17.45 mm	15.88 mm	Slotted	1	1	1 W	100 kOhms	PC Pins	0.866 in	22 mm	Side Adjustment

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 5.01

General part information

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 2W PC Pins
