SF7381-6PG-3ES

Active

Conxall/Switchcraft

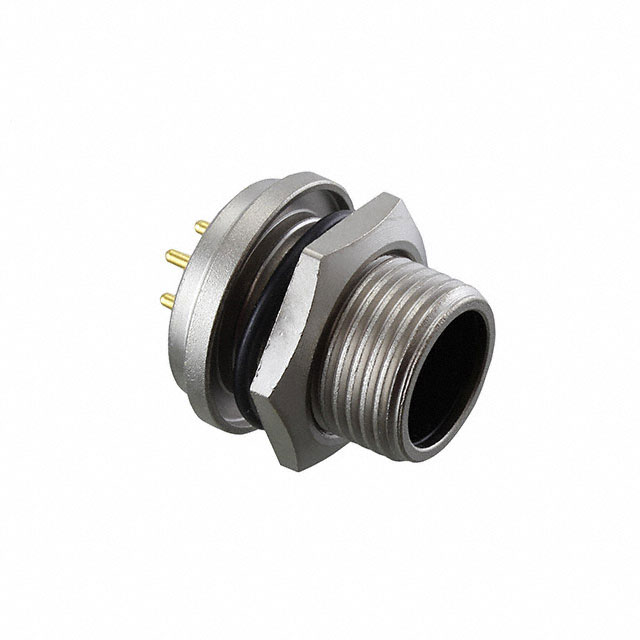

CONN RCPT MALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF7381-6PG-3ES	SF7381 Series

Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyester Resin	Polyester Resin
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	6	2 - 6
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT MALE 6POS GOLD SOLDER

Part	Shell Finish	Connector Type	Contact Material	Shell Material	Mounting Feature	Number of Positions	Color	Primary Material	Orientation	Termination	Contact Finish - Mating	Shielding	Insert Material	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft SF7381-6PG-3ES	Nickel	Male Pins, Receptacle	Copper Alloy	Copper Alloy	Bulkhead - Front Side Nut	6	Silver	Metal	Keyed	Solder	Gold	Shielded	Polyester Resin	IP66/IP68	Panel Mount, Through Hole	-40 °C	120 °C
Conxall/Switchcraft SF7381-4PG-3ES	Nickel	Male Pins, Receptacle	Copper Alloy	Copper Alloy	Bulkhead - Front Side Nut	4	Silver	Metal	Keyed	Solder	Gold	Shielded	Polyester Resin	IP66/IP68	Panel Mount, Through Hole	-40 °C	120 °C
Conxall/Switchcraft SF7381-2SG-3ES	Nickel	Receptacle, Female Sockets	Copper Alloy	Copper Alloy	Bulkhead - Front Side Nut	2	Silver	Metal	Keyed	Solder	Gold	Shielded	Polyester Resin	IP66/IP68	Panel Mount, Through Hole	-40 °C	120 °C
Conxall/Switchcraft SF7381-2PG-3ES	Nickel	Male Pins, Receptacle	Copper Alloy	Copper Alloy	Bulkhead - Front Side Nut	2	Silver	Metal	Keyed	Solder	Gold	Shielded	Polyester Resin	IP66/IP68	Panel Mount, Through Hole	-40 °C	120 °C
Conxall/Switchcraft SF7381-5PG-3ES	Nickel	Male Pins, Receptacle	Copper Alloy	Copper Alloy	Bulkhead - Front Side Nut		Silver	Metal	Keyed	Solder	Gold	Shielded	Polyester Resin	IP66/IP68	Panel Mount, Through Hole	-40 °C	120 °C
