AMSRL-4805Z

Active

aimtec

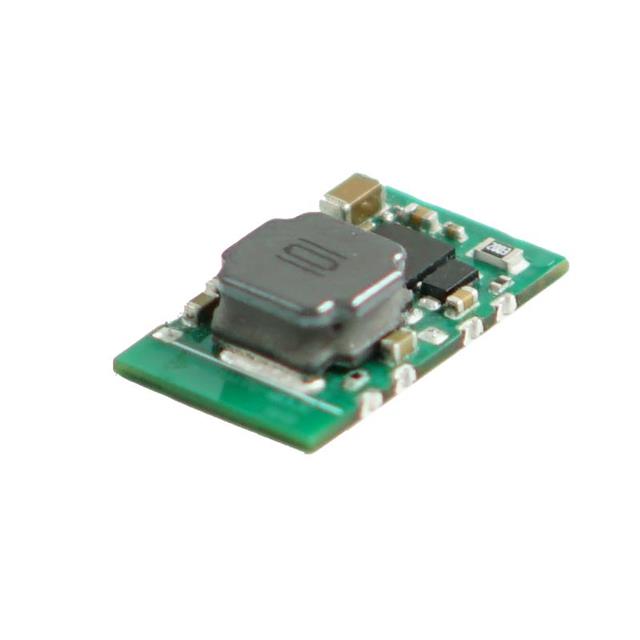

DC DC CONVERTER 5V 2.5W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 5V 2.5W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMSRL-4805Z	AMSRL Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	500 mA	1 - 500 A
Efficiency	74 %	69 - 92 %
Features	Remote On/Off, Adjustable Output	Remote On/Off, Adjustable Output
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	105 C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	10-SMD Module, 6 Leads	10-SMD Module, 7 Leads, 10-SMD Module, 6 Leads
Power (Watts)	-	1.8 - 12 W
Size / Dimension [x]	0.77 in	0.6 - 0.77 in
Size / Dimension [x]	19.5 mm	15.2 - 19.5 mm
Size / Dimension [y]	11.8 mm	8.5 - 11.8 mm
Size / Dimension [y]	0.47 "	0.34 - 0.47 in
Size / Dimension [z]	5 mm	5 - 8.5 mm
Size / Dimension [z]	0.2 "	0.2 - 0.33 "
Supplier Device Package	SMD	SMD
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	72 V	32 - 72 V
Voltage - Input (Min) [Min]	9 V	4.75 - 16 V
Voltage - Output 1	5 V	1.8 - 12 V

DC DC CONVERTER 1.8V 1.8W

Part	Applications	Power (Watts)	Efficiency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max) [Max]	Features	Voltage - Input (Max) [Max]	Supplier Device Package	Package / Case
aimtec AMSRL1-781.8JZ	ITE (Commercial)	1.8 W	69 %	1.8 V	0.45 in	15.2 mm	0.6 in	0.32 "	8.5 mm	11.4 mm	Non-Isolated PoL Module	Surface Mount	85 °C	-40 °C	4.75 V	1	1 A	Adjustable Output, Remote On/Off	32 V
aimtec AMSRL1-7805JZ	ITE (Commercial)	5 W	85 %	5 V	0.34 in	15.2 mm	0.6 in	0.33 in	8.3 mm	8.5 mm	Non-Isolated PoL Module	Surface Mount	85 °C	-40 °C	8 V	1	1 A	Adjustable Output, Remote On/Off	36 V	SMD	10-SMD Module, 7 Leads
aimtec AMSRL1-783.3JZ	ITE (Commercial)	3.3 W	80 %	3.3 V	0.45 in	15.2 mm	0.6 in	0.32 "	8.5 mm	11.4 mm	Non-Isolated PoL Module	Surface Mount	85 °C	-40 °C	6.5 V	1	1 A	Adjustable Output, Remote On/Off	36 V
aimtec AMSRL1-7812JZ	ITE (Commercial)	12 W	92 %	12 V	0.45 in	15.2 mm	0.6 in	0.32 "	8.5 mm	11.4 mm	Non-Isolated PoL Module	Surface Mount	85 °C	-40 °C	16 V	1	1 A	Adjustable Output, Remote On/Off	36 V
aimtec AMSRL-4805Z	ITE (Commercial)		74 %	5 V	0.47 "	19.5 mm	0.77 in	0.2 "	5 mm	11.8 mm	Non-Isolated PoL Module	Surface Mount	105 C	-40 °C	9 V	1	500 mA	Adjustable Output, Remote On/Off	72 V	SMD	10-SMD Module, 6 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 5V 500mA 9V - 72V Input
