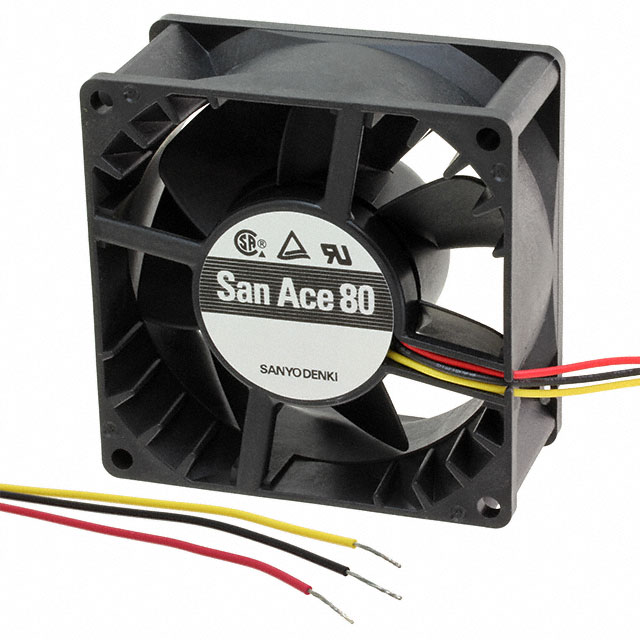

109R0848K401
ActiveSanyo Denki America Inc.
FAN AXIAL 80X25MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
109R0848K401
ActiveSanyo Denki America Inc.
FAN AXIAL 80X25MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 109R0848K401 |
|---|---|
| Air Flow | 55.1 CFM |
| Air Flow | 1.54 mł/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 100 mA |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 41 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 4.8 W |
| RPM | 4600 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 0.355 in H2O |
| Static Pressure | 88.4 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 55.2 VDC |
| Voltage Range [Min] | 40.8 VDC |
| Weight | 0.243 lb |
| Weight | 110.22 g |
| Width [y] | 25 mm |
109R0848 Series
| Part | Voltage - Rated [custom] | Material - Frame | Material - Blade | Bearing Type | Current Rating (Amps) | Fan Type | Termination | Noise | Features | Approval Agency | Voltage Range [Max] | Voltage Range [Min] | Static Pressure | Static Pressure | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | RPM | Width [y] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanyo Denki America Inc. | 48 VDC | Plastic | Plastic | Ball | 60 mA | Tubeaxial | 3 Wire Leads | 34 dB(A) | Locked Rotor Protection Speed Sensor (Tach) | CSA TUV UL | 55.2 VDC | 40.8 VDC | 48.1 Pa | 0.193 in H2O | 1.19 mł/min | 42.4 CFM | -20 °C | 70 °C | -20 C | 70 °C | 0.243 lb | 110.22 g | 80 mm | 80 mm | 2.88 W | 3400 RPM | 25 mm | |
Sanyo Denki America Inc. | 48 VDC | Plastic | Plastic | Ball | 100 mA | Tubeaxial | 3 Wire Leads | 41 dB | Locked Rotor Protection Speed Sensor (Tach) | CSA TUV UL | 55.2 VDC | 40.8 VDC | 88.4 Pa | 0.355 in H2O | 1.54 mł/min | 55.1 CFM | -20 °C | 60 °C | -20 C | 60 °C | 0.243 lb | 110.22 g | 80 mm | 80 mm | 4.8 W | 4600 RPM | 25 mm | 40000 Hrs |
Sanyo Denki America Inc. | 48 VDC | Plastic | Plastic | Ball | 100 mA | Tubeaxial | 3 Wire Leads | 41 dB | Locked Rotor Sensor | CSA TUV UL | 55.2 VDC | 40.8 VDC | 88.4 Pa | 0.355 in H2O | 1.54 mł/min | 55.1 CFM | -20 °C | 60 °C | -20 C | 60 °C | 0.243 lb | 110.22 g | 80 mm | 80 mm | 4.8 W | 4600 RPM | 25 mm | 40000 Hrs |
Sanyo Denki America Inc. | 48 VDC | Plastic | Plastic | Ball | 100 mA | Tubeaxial | 3 Wire Leads | 41 dB | Locked Rotor Protection Speed Sensor (Tach) | CSA TUV UL | 55.2 VDC | 40.8 VDC | 88.4 Pa | 0.355 in H2O | 1.54 mł/min | 55.1 CFM | -20 °C | 60 °C | -20 C | 60 °C | 0.243 lb | 110.22 g | 80 mm | 80 mm | 4.8 W | 4600 RPM | 25 mm | 40000 Hrs |
Sanyo Denki America Inc. | 48 VDC | Plastic | Plastic | Ball | 60 mA | Tubeaxial | 3 Wire Leads | 34 dB(A) | Locked Rotor Sensor | CSA TUV UL | 55.2 VDC | 40.8 VDC | 48.1 Pa | 0.193 in H2O | -20 °C | 70 °C | -20 C | 70 °C | 0.243 lb | 110.22 g | 80 mm | 80 mm | 2.88 W | 3400 RPM | 25 mm | |||
Sanyo Denki America Inc. | 48 VDC | Plastic | Plastic | Ball | 100 mA | Tubeaxial | 2 Wire Leads | 41 dB | CSA TUV UL | 55.2 VDC | 40.8 VDC | 88.4 Pa | 0.355 in H2O | 1.54 mł/min | 55.1 CFM | -20 °C | 60 °C | -20 C | 60 °C | 0.243 lb | 110.22 g | 80 mm | 80 mm | 4.8 W | 4600 RPM | 25 mm | 40000 Hrs | |
Sanyo Denki America Inc. | 48 VDC | Plastic | Plastic | Ball | 100 mA | Tubeaxial | 2 Wire Leads | 41 dB | CSA TUV UL | 55.2 VDC | 40.8 VDC | 88.4 Pa | 0.355 in H2O | 1.54 mł/min | 55.1 CFM | -20 °C | 60 °C | -20 C | 60 °C | 0.243 lb | 110.22 g | 80 mm | 80 mm | 4.8 W | 4600 RPM | 25 mm | 40000 Hrs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.42 | |
| 10 | $ 16.63 | |||
| 40 | $ 15.64 | |||
| 80 | $ 15.05 | |||
| 120 | $ 13.86 | |||
| 280 | $ 12.97 | |||
| 520 | $ 12.77 | |||
Description
General part information
109R0848 Series
Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 55.1 CFM (1.54m³/min) 3 Wire Leads
