Q-1V01L000R2.5M

Active

Amphenol Custom Cable

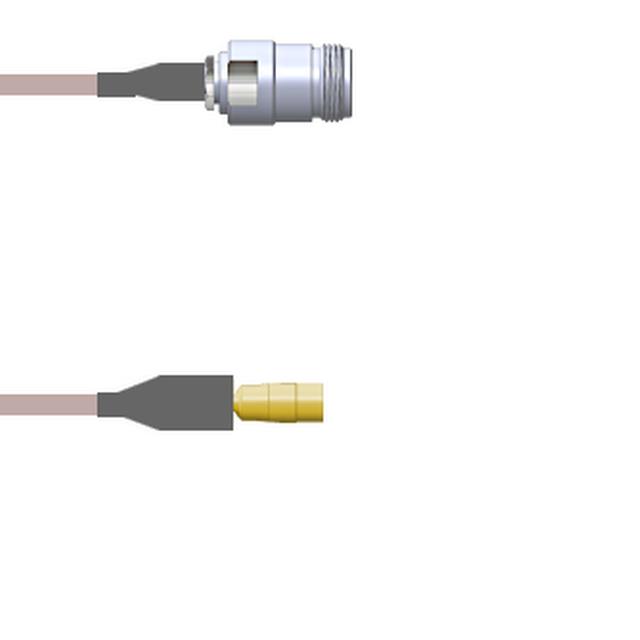

CBL ASSY MMCX-NTYPE JCK-JCK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V01L000R2.5M

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE JCK-JCK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V01L000R2.5M

1st Connector	MMCX Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-1V01L0 Series

Part	1st Contact Gender	Style	Frequency - Max [Max]	Color	2nd Connector Mounting Type	Features	Overall Impedance	Cable Type	Length [x]	Length [x]	2nd Contact Gender	2nd Connector	1st Connector Mounting Type	1st Connector	Length	Length	Length
Amphenol Custom Cable Q-1V01L000R.25M	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB	9.843 "	250 mm	Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack
Amphenol Custom Cable Q-1V01L000R108i	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-1V01L000R012i	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	304.8 mm		12 "
Amphenol Custom Cable Q-1V01L000R2.5M	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	2.5 m	8.2 '	98.4 in
Amphenol Custom Cable Q-1V01L000R024i	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	609.6 mm		24 "
Amphenol Custom Cable Q-1V01L000R001M	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-1V01L000R048i	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	1200 mm	4 ft	48 in
Amphenol Custom Cable Q-1V01L000R.75M	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	750 mm		29.53 "
Amphenol Custom Cable Q-1V01L000R060i	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	1.5 m	5 ft	5 '
Amphenol Custom Cable Q-1V01L000R036i	Female	MMCX to N-Type	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316 DB			Female	N-Type Jack	Free Hanging (In-Line)	MMCX Jack	91.44 cm		36 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 314.73
		25	$ 292.70
		50	$ 270.67
		100	$ 251.79
		250	$ 236.05

Description

General part information

Q-1V01L0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 DB 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
