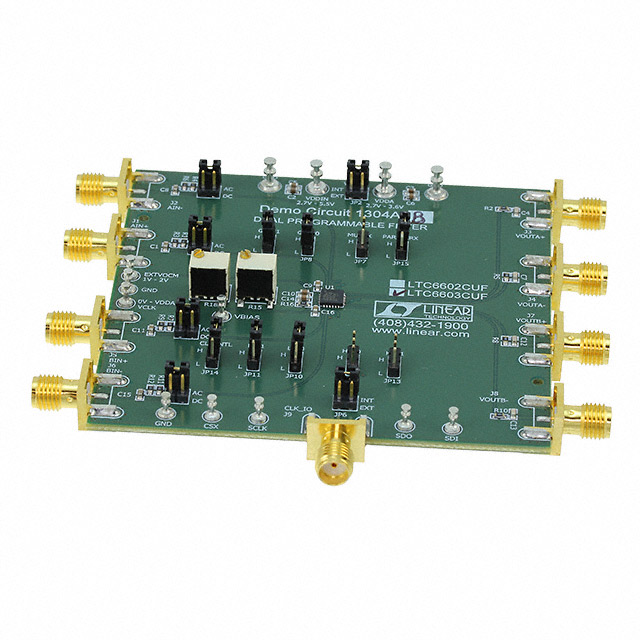

DC1304A-B

Obsolete

Analog Devices

EVAL BOARD FOR LTC6603

Search across all available documentation for this part.

Obsolete

Analog Devices

EVAL BOARD FOR LTC6603

Technical Specifications

Parameters and characteristics for this part

Part	Function	Utilized IC / Part	Type	Contents	Supplied Contents	Secondary Attributes	Primary Attributes	Mounting Type	Frequency - Cutoff or Center	Number of Filters	Voltage - Supply [Min]	Voltage - Supply [Max]	Filter Order	Package / Case	Supplier Device Package	Filter Type [custom]
Analog Devices DC1304A-B	Low Pass	LTC6603	Filter	Board(s)	Board(s)	Differential Output	Differential Inputs
Analog Devices LTC6603CUF#TRPBF								Surface Mount	2.5 MHz	2	2.7 V	3.6 V	9th	24-WFQFN Exposed Pad	24-QFN (4x4)	Low Pass
Analog Devices LTC6603IUF#TRPBF								Surface Mount	2.5 MHz	2	2.7 V	3.6 V	9th	24-WFQFN Exposed Pad	24-QFN (4x4)	Low Pass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LTC6603 Low Pass Filter Evaluation Board
