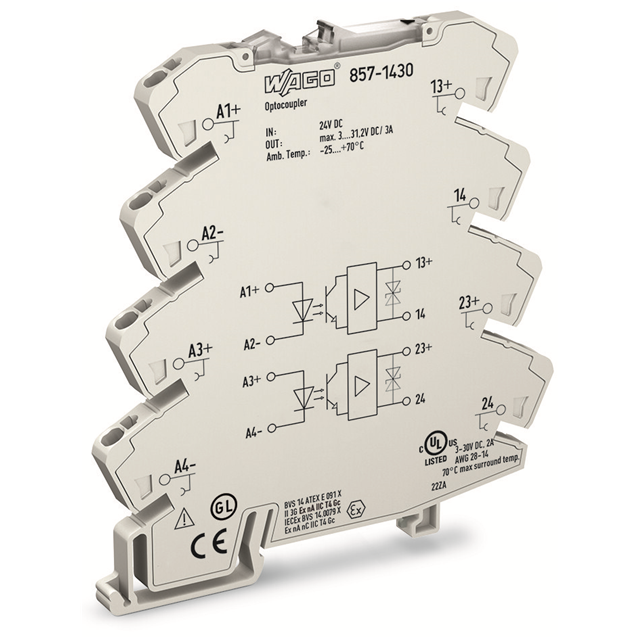

857-1430

Active

WAGO Corporation

SSR RELAY SPST-NO 3A 3-31.2V

Search across all available documentation for this part.

Active

WAGO Corporation

SSR RELAY SPST-NO 3A 3-31.2V

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 500MA 9-60V

Part	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Input	Mounting Type	Approval Agency
WAGO Corporation 857-1432	Spring Terminal	9 V	60 V	Module	500 mA	70 °C	-25 °C	DC	24 V	DIN Rail	EAC, UL
WAGO Corporation 857-1430	Spring Terminal	3 V	31.2 V	Module	3 A	70 °C	-25 °C	DC	24 V	DIN Rail	EAC, UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module

Technical documentation and resources

No documents available
